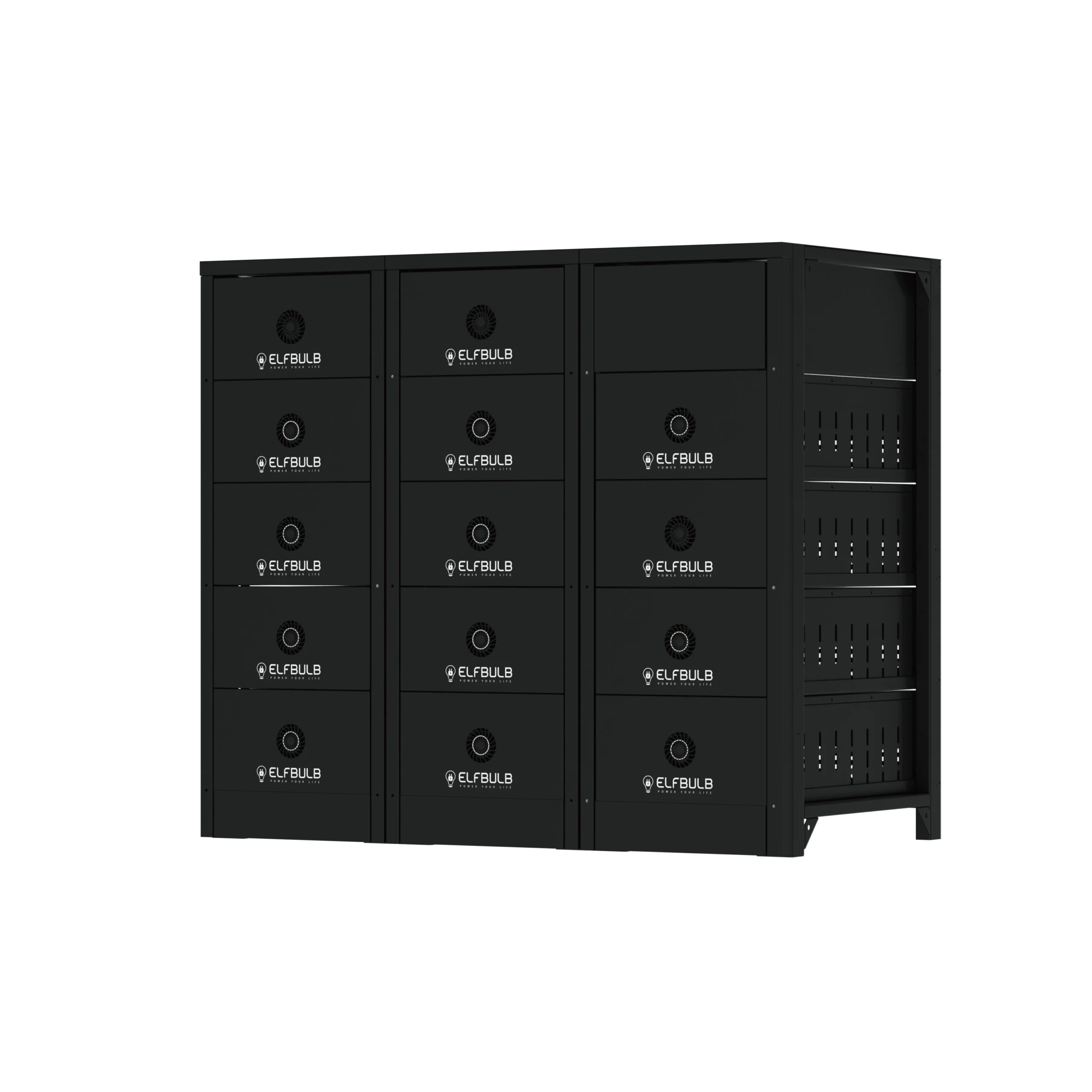

New Design LiFePO4 DC High Voltage Battery System 200kWh to 5619kWh Up to 28 Clusters Parallel

Parameters

Item	Parameters
Battery Module Votage(V)	51.2V
Battery Module Capacity(Ah)	280Ah
Battery Module Energy(kWh)	14.336kWh
Battery Cluster Voltage(V)	716.8V
Battery Cluster Capacity(Ah)	280Ah
Battery Cluster Energy(kWh)	200.704kWh
Max Continuous Charge/Discharge Current(A)	140A
Max Charge/Discharge Current(A)(60 Seconds)	280A
Battery Cell	Grade A New Cells
Cycle life	>6000 times @80%DOD@0.5C@25℃
Dimension(mm)	1365 (W) × 1556 (H) × 814 (D)
High Voltage Cabinet	●
Active Balancing	●
Parallel Connection	Up to 28 clusters
System Capacity Range	200kWh to 5619kWh

Peak Shaving & Valley Filling: Lower Electricity Bills

Our system charges when electricity is cheap and discharges when it's expensive, significantly lowering your power costs. It also stores excess solar energy, boosting green energy self-consumption to accelerate your ROI.

Backup Power: Ensure Production

The system switches over in milliseconds during outages, ensuring continuous production. It also stabilizes voltage to protect sensitive equipment and extend its lifespan.

Smart Management: Easy and Hands-Off

Our cloud platform allows for real-time monitoring of the system. It operates automatically, requiring no manual intervention and enabling true hands-off operation.

Flexible Deployment: Scalable on Demand

Its modular design lets you scale capacity as needed, lowering your initial investment. The compact design also makes installation simple and space-efficient.
