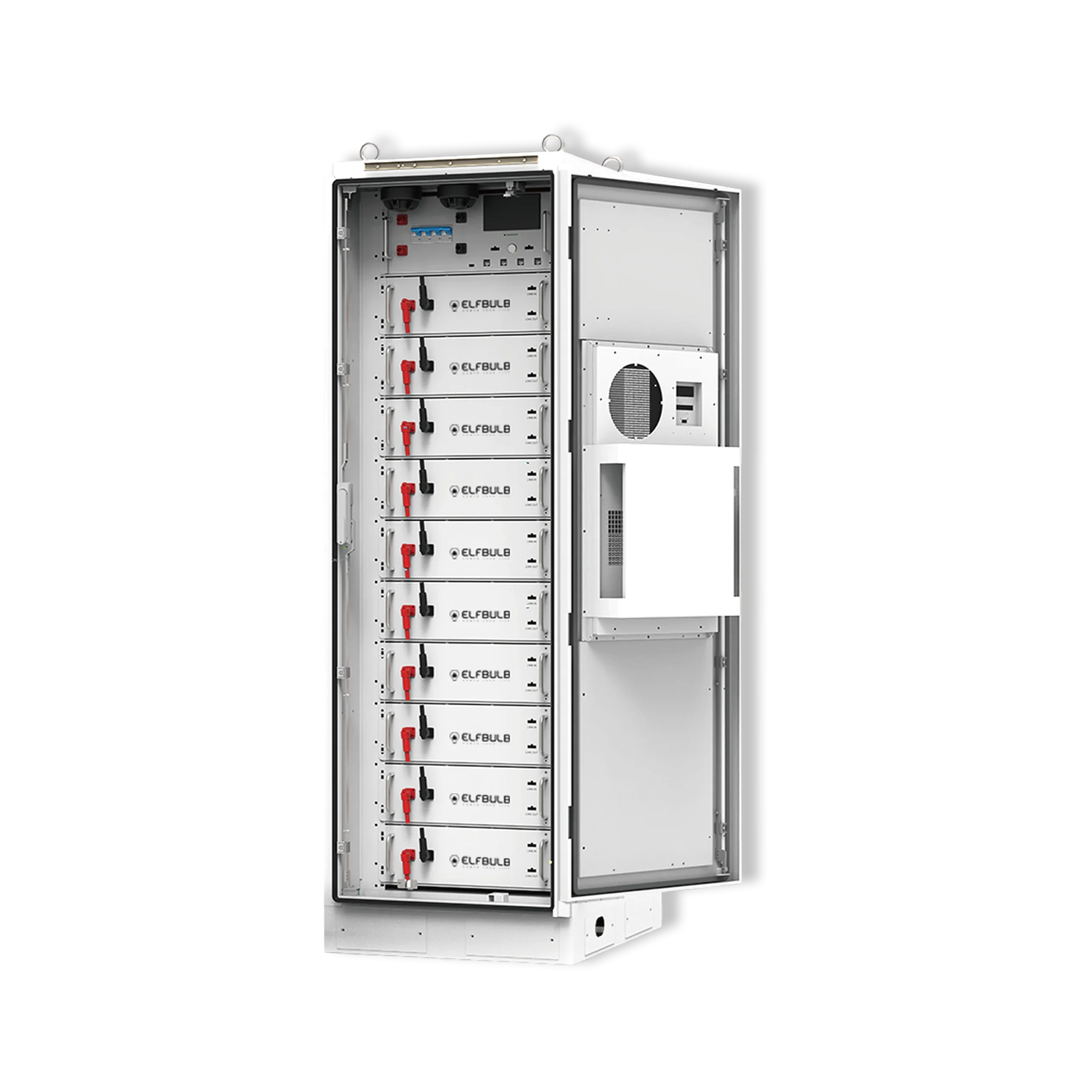

25KW 50KWH Battery Energy Storage System

Parameters

ltem	Parameter	Remark
Rating Voltage	512V
Capacity	10OAh	@0.2C discharge after full charge
minimum capacity	≥10OAh	@0.2C discharge after full charge
communication mode	RS485、CAN
Charge Voltage	584V
Charge current	≤100A
lmpedance	≤180mΩ(Max)
Charging Mode	CC/CV	Constant Current/Constant Voltage
Charging Method	Standard Charging 0.2C	Charging Current:20A
Charging Method	Fast Charging0.5C	Charging Current:50A
Charging Time	About 6 Hours	Standard Charging
Charging Time	About 3 Hours	Fast Charging
Overcharge Voltage	3.65V /Cel	Single string voltage
Over Discharge Cut Off Voltag	2.8V/Cel	Single string voltage
Rated discharge current	≤10OA	Maximum discharge current:100A
Over Current	120A
Short Circuit	Recover after removing the short circuit load
Operating Consumption Current	50mA(Max)
Operating Temperature	+10~+45°C	Charging
Operating Temperature	-20~+60℃	Discharging
Storage Temperature	-20℃-50℃℃	Storage capacity should be 60±25%R.H full charge capacity
Cycle Life	6000 cycle	Percentage ofrecov erable capacity 80%
Dimensions	7906502049mm(cabinet); 570440(482)150mm(Single module 10); 490442(482)*222mm(HV Box)
Weight(kg)	>774kg(Weight of a single battery modulex 10+BMU weight+cabinet weight (including air conditioner))
Shipped product charge	50%-60%battery volume delivery
Package material	Carton+wooden fumigation tray

Peak Shaving & Valley Filling: Lower Electricity Bills

Our system charges when electricity is cheap and discharges when it's expensive, significantly lowering your power costs. It also stores excess solar energy, boosting green energy self-consumption to accelerate your ROI.

Backup Power: Ensure Production

The system switches over in milliseconds during outages, ensuring continuous production. It also stabilizes voltage to protect sensitive equipment and extend its lifespan.

Smart Management: Easy and Hands-Off

Our cloud platform allows for real-time monitoring of the system. It operates automatically, requiring no manual intervention and enabling true hands-off operation.

Flexible Deployment: Scalable on Demand

Its modular design lets you scale capacity as needed, lowering your initial investment. The compact design also makes installation simple and space-efficient.
