| MODEL |

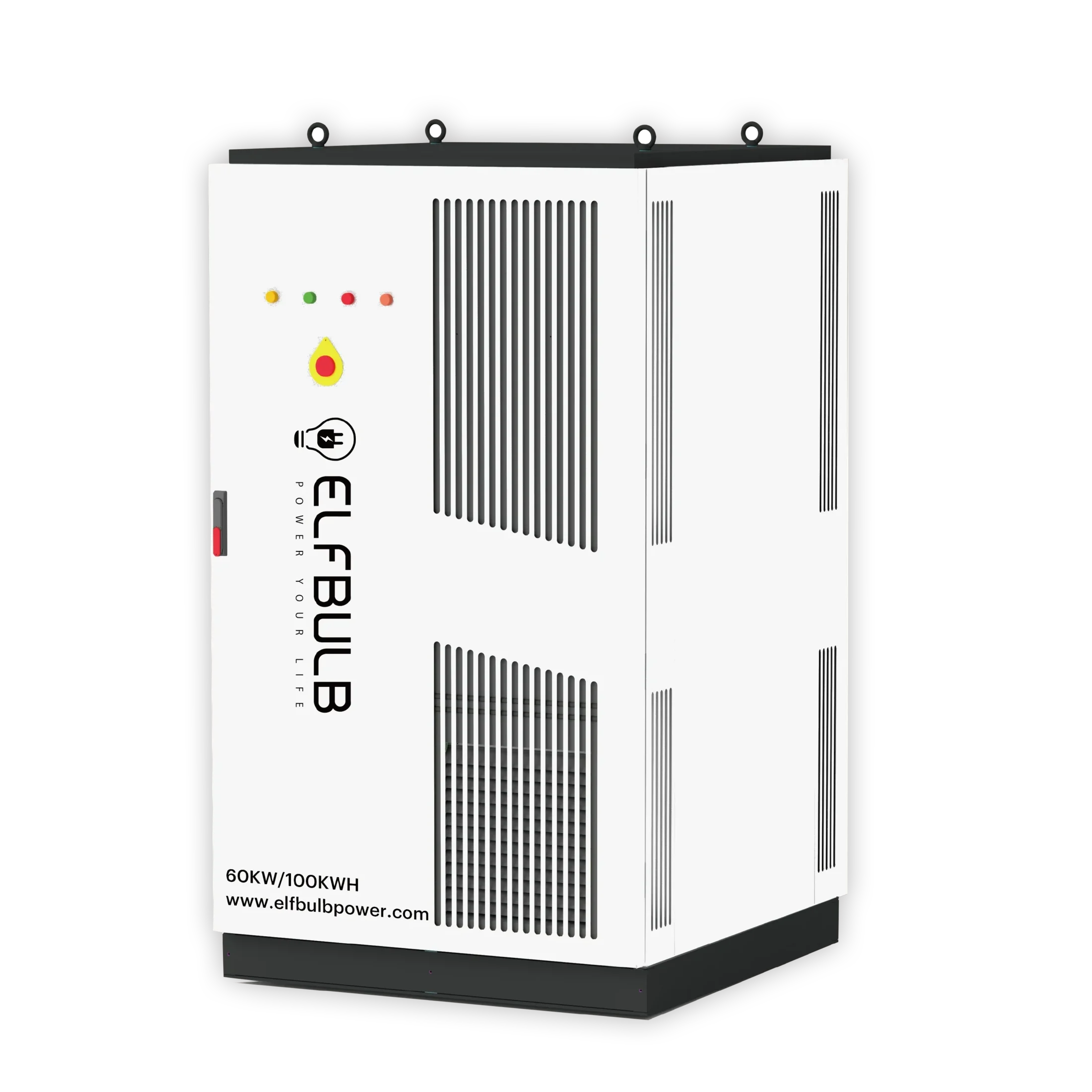

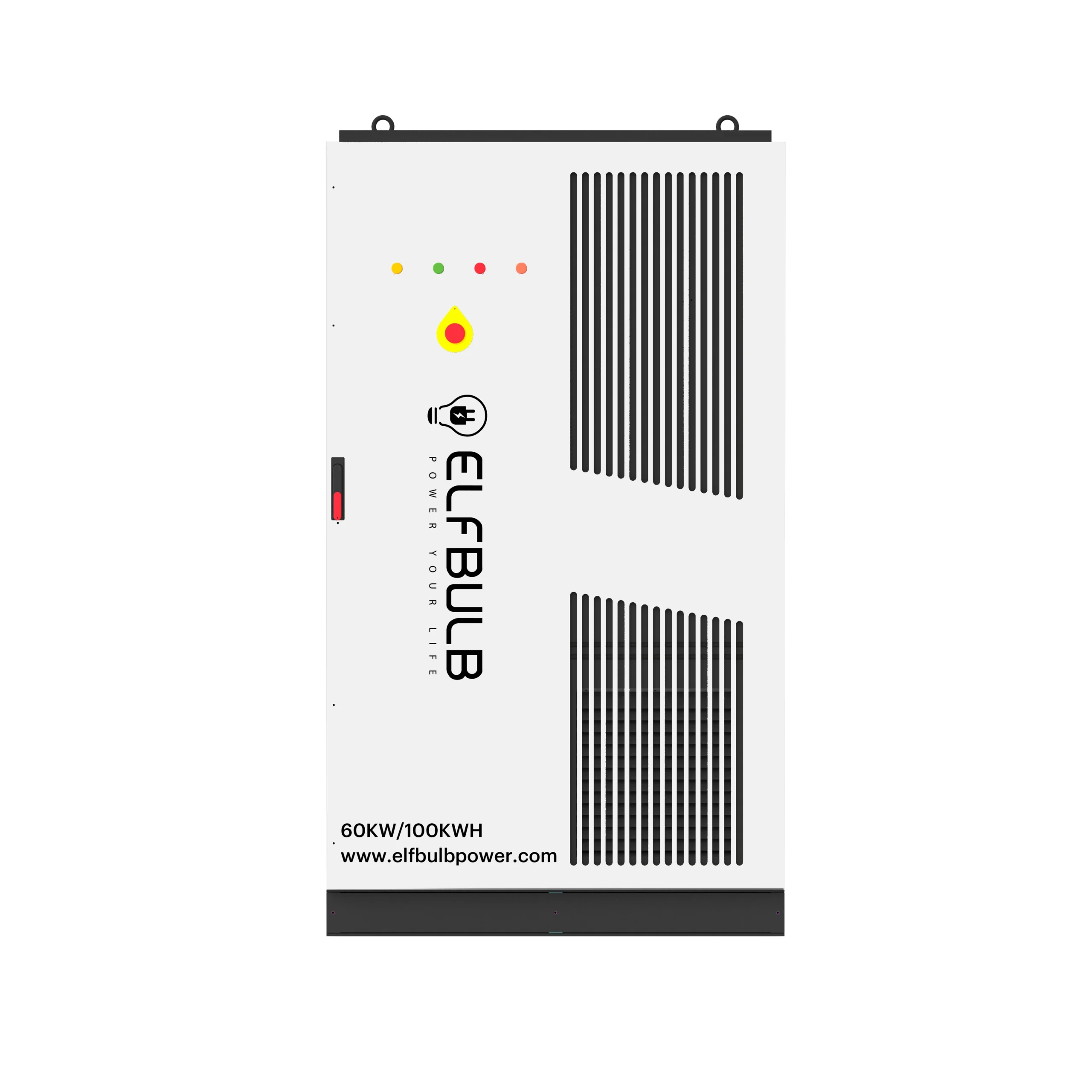

ESS-60-100 (60KW-100KWH) |
| General Data |
|
| Dimension(W*H*D) |
1165*1246*2250mm |
| Weight |
<1200 Kg |
| Working Temperature Range ( ℃) |
-20~60 |
| Protection Class |
IP54 |
| Altitude |
2000 |
| Humidity |
0~95% |
| Fire Extinguishing |
Aerogel |
| Air Conditioner |
5KW for cooling / 3KW for heating |
| Anti-Corrosion |
C3 (Optional upgrade to C5) |
| Authentication level |
CE/UN38.3/MSDS |
| Battery Data |
|
| Battery Type |
Li-ion (LFP) |
| Nominal Capacity (kWh) |
100.352KWh |
| Battery Item |
Elfcube |
| Battery Module Qty. |
51.2V 280Ah 14.336KWh 16S1P * 7 Battery Pack |
| DC Voltage Range(V) |
313.6~408.8 |
| Max. Operation Current (A) |
140 |
| Efficiency |
95% |
| PCS DC/AC Data On-grid Mode |
|
| Rated AC Power (KW ) |
60 (expandable to 7*60) |
| Rated AC Output Voltage(V) |
400 |
| Rated AC Output Frequency (Hz) |
50/60 |
| Max. AC Current(A) |
90 |
| Overload Capacity |
110%@30S |
| AC PF |
0.8（leading）~0.8（lagging） |
| THDi |
≤3% |
| Isolation Type |
Non-isolation |
| Peak Efficiency |
98.50% |
| Unbalanced capacity |
100% |
| PCS DC/AC Data Off-grid Mode |
|
| Output voltage accuracy |
≤1% |
| Unbalanced capacity |
100% |
| Voltage harmonic distortion |
＜2% @line load |
| Overload capacity |
≤150% |
| PV DC/DC Data Parameter |
|
| Rated Power(kW) |
60 (expandable to 7*60) |
| PV Input Voltage(Vdc) |
200 – 850 |
| Max. current(A) |
64 |
| Max. Efficiency(%) |
98.50% |
| Operation Mode |
|
| On/off-grid Switch |
STS module, switching time<20ms |
|
10 inch LCD Touch Panel |
| EMS |
Self-Consumption; Micro-grid control; Demand response; |
|
Remote Control; Time of use; |
| Communication Type |
Modbus TCP/IP |
