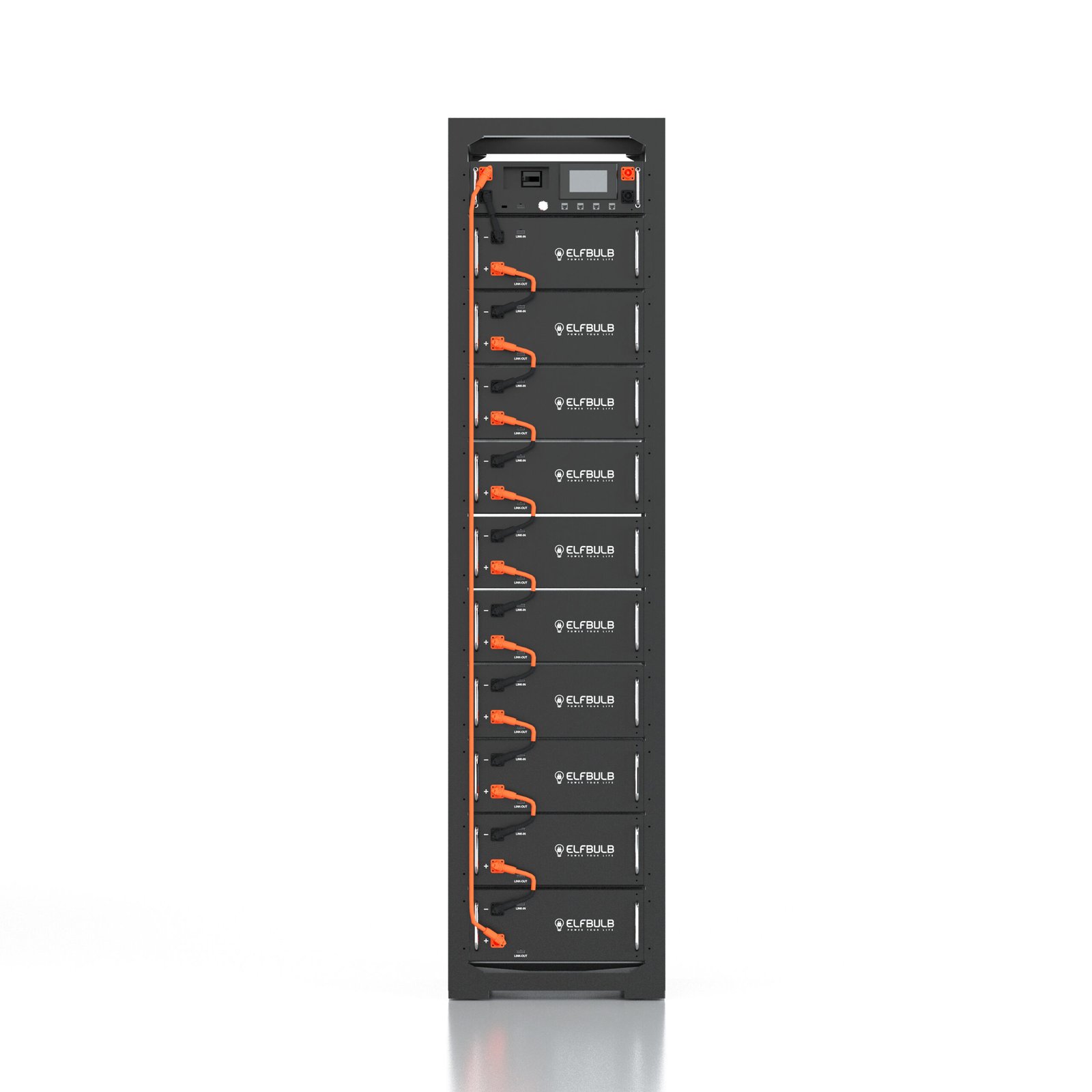

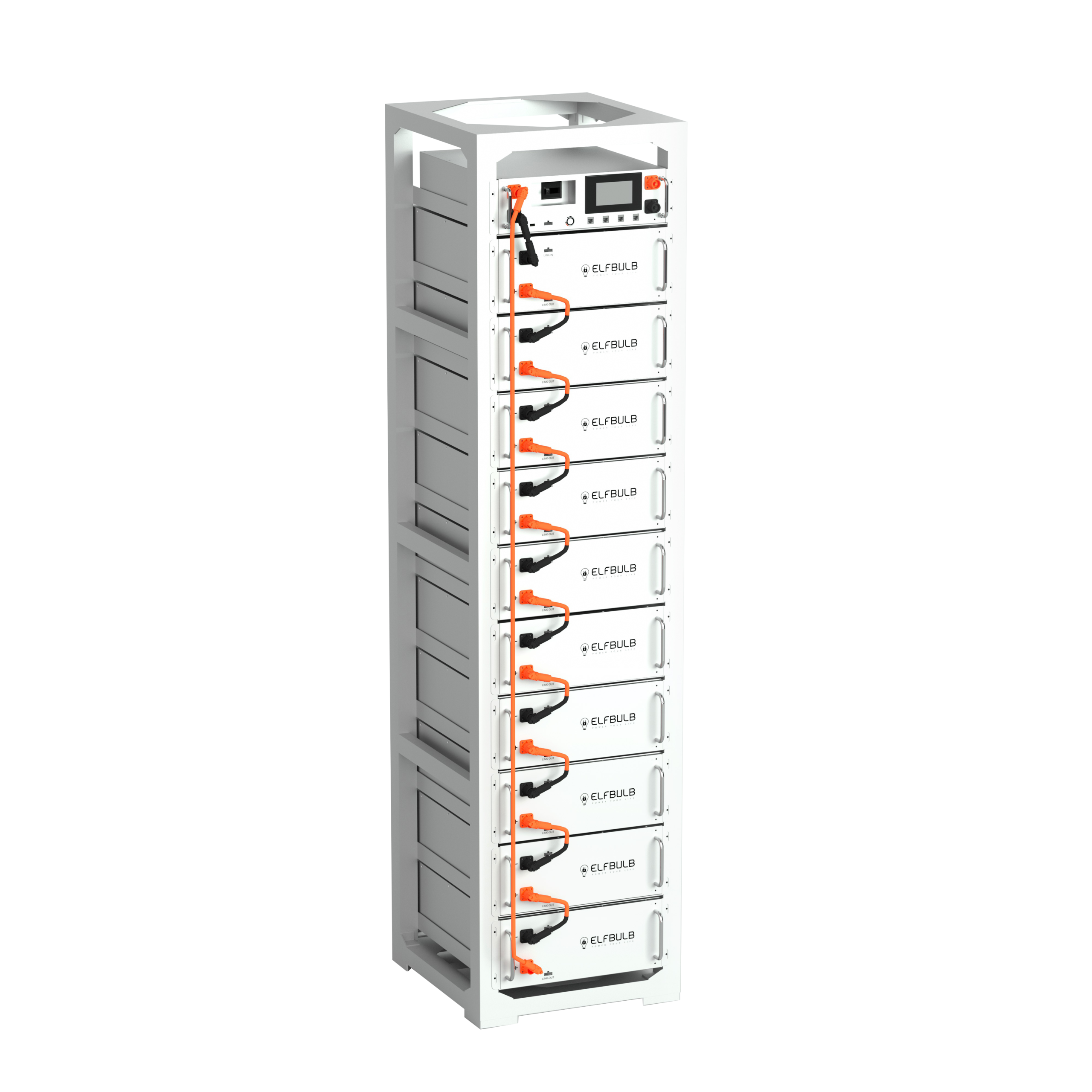

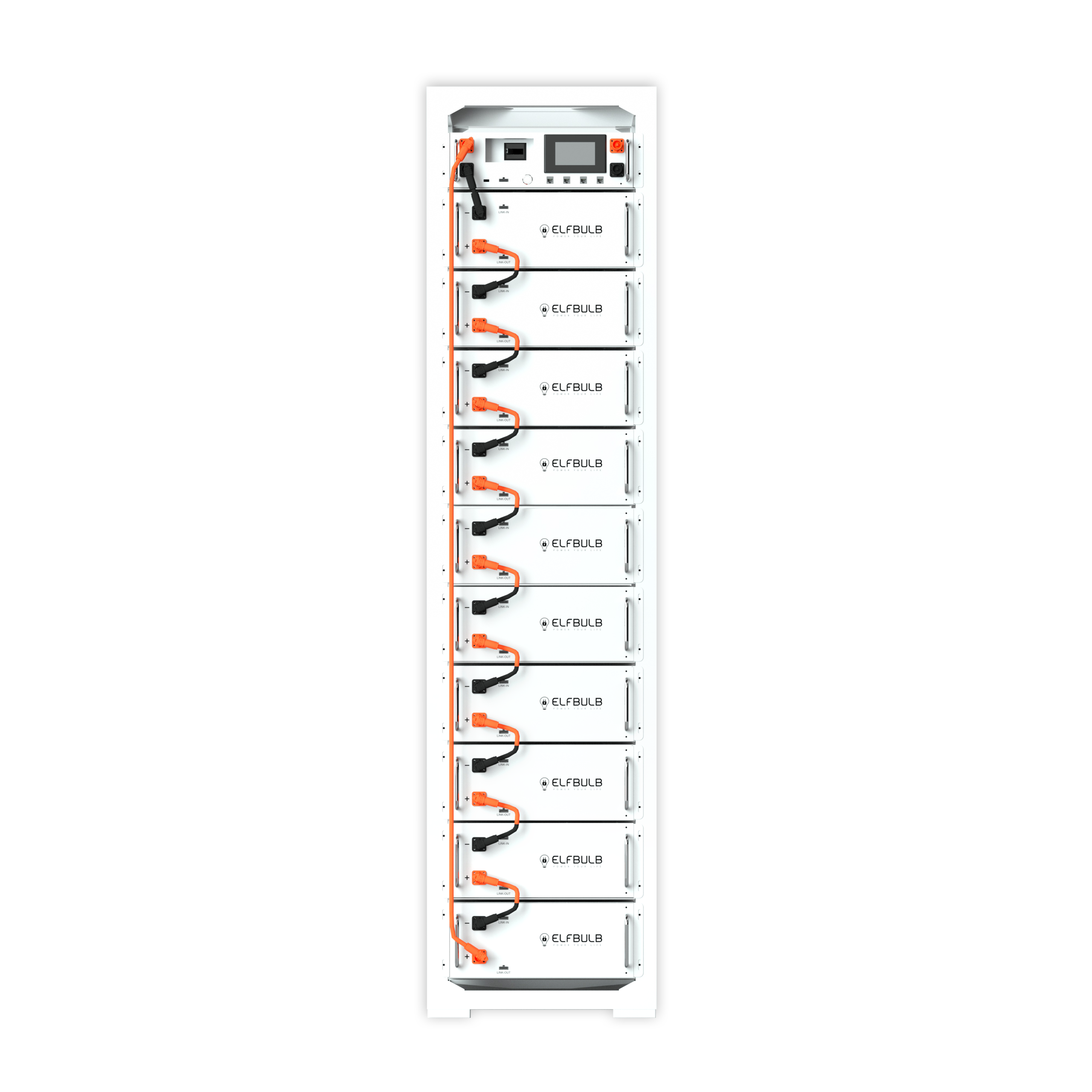

High Voltage Rack Mounted Cabinet 153V To 614V 100AH

Parameters

MODEL	EBH-153-100	EBH-204-100	EBH-409-100	EBH-614-100
Module Energy	5.12KWH
Module Nominal Voltage	51.2V
Module Capacity	100AH
BAT Module Qty(Optional)	3×51.2V100Ah	4×51.2V100Ah	8×51.2V100Ah	12×51.2V100Ah
System Nominal Voltage	153.6V	204.8V	409.6V	614.4V
System Operating Voltage	120~175.2V	160~234V	320~467.2V	480~700V
System Energy	15.36KWH	20.48KWH	40.96KWH	61.44KWH
Charge/Discharge Current(A)	Recommend:50 \|Nominal:100\|Peak Discharge 150（2mins,25℃）
Working Temperature(℃)	Charge:0~55/Discharge:-20~55
Communication Port	CAN/RS232/RS485
Humidity	5~85%RH
Altitude	≤2000m
IP Rating of Enclosure	IP54
Net Weight(without cabinet)	150kg	230kg	500kg	650kg
Dimension(mm)	589590900	1200* 693*1102	20906931102	5506002240
Installation Location	Rack Mounting
Storage Temperature(C)	0~35
Recommend DOD of Discharge	90%
Cycle Life	25±2°C, 0.5C/0.5C,EOL70%≥6000
Certification	CE/IEC62619 /UL1973 /UL9540A /UN38.3

Peak Shaving & Valley Filling: Lower Electricity Bills

Our system charges when electricity is cheap and discharges when it's expensive, significantly lowering your power costs. It also stores excess solar energy, boosting green energy self-consumption to accelerate your ROI.

Backup Power: Ensure Production

The system switches over in milliseconds during outages, ensuring continuous production. It also stabilizes voltage to protect sensitive equipment and extend its lifespan.

Smart Management: Easy and Hands-Off

Our cloud platform allows for real-time monitoring of the system. It operates automatically, requiring no manual intervention and enabling true hands-off operation.

Flexible Deployment: Scalable on Demand

Its modular design lets you scale capacity as needed, lowering your initial investment. The compact design also makes installation simple and space-efficient.
