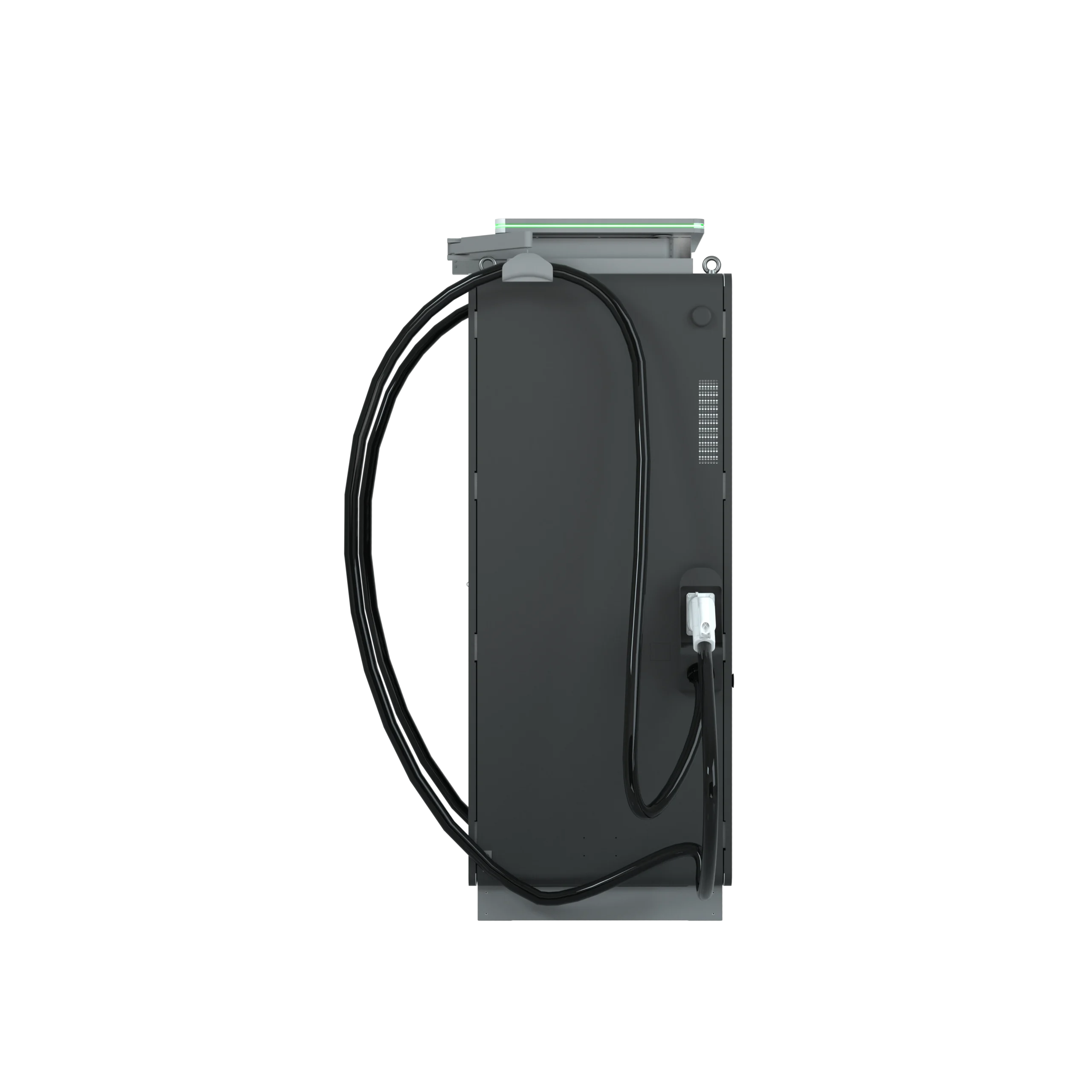

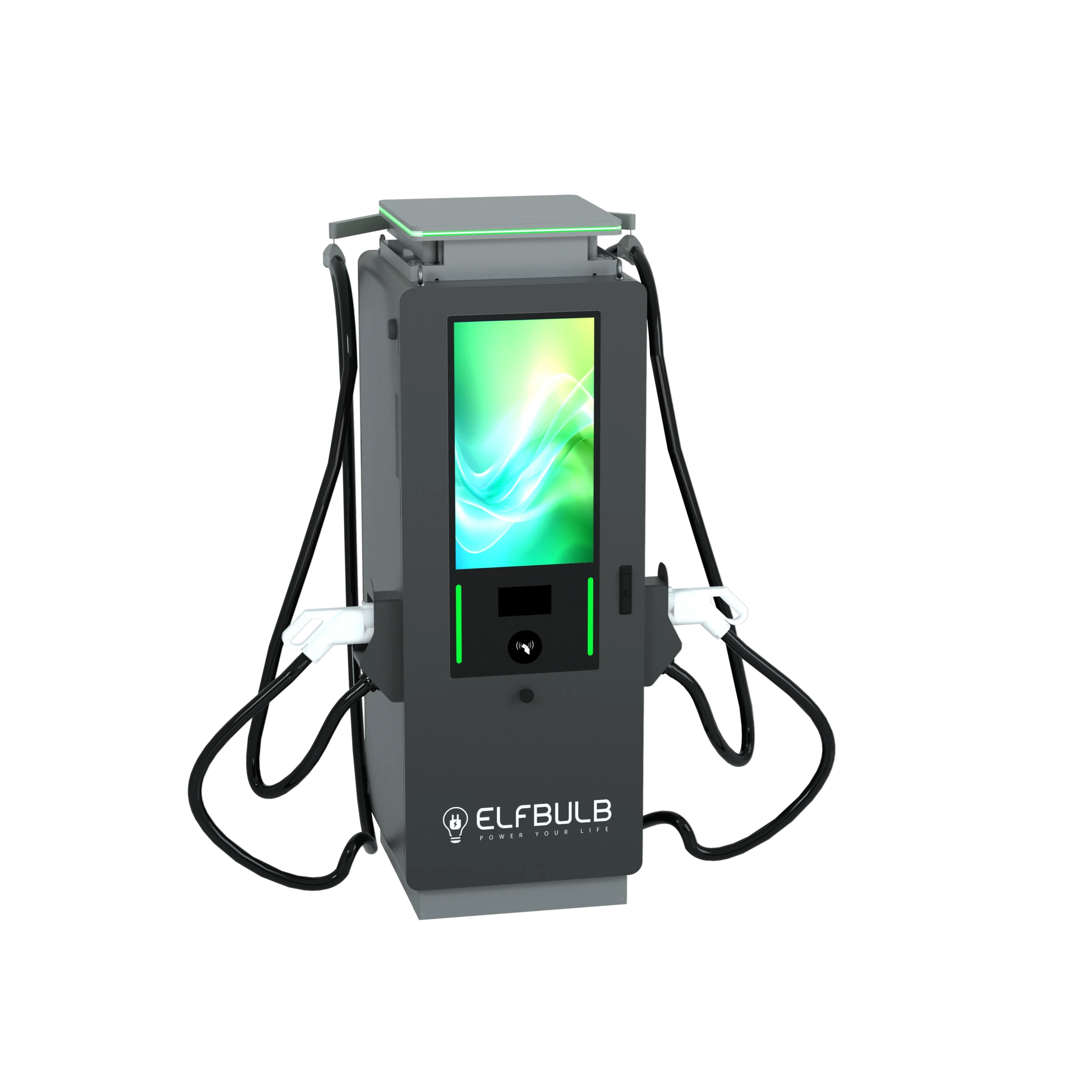

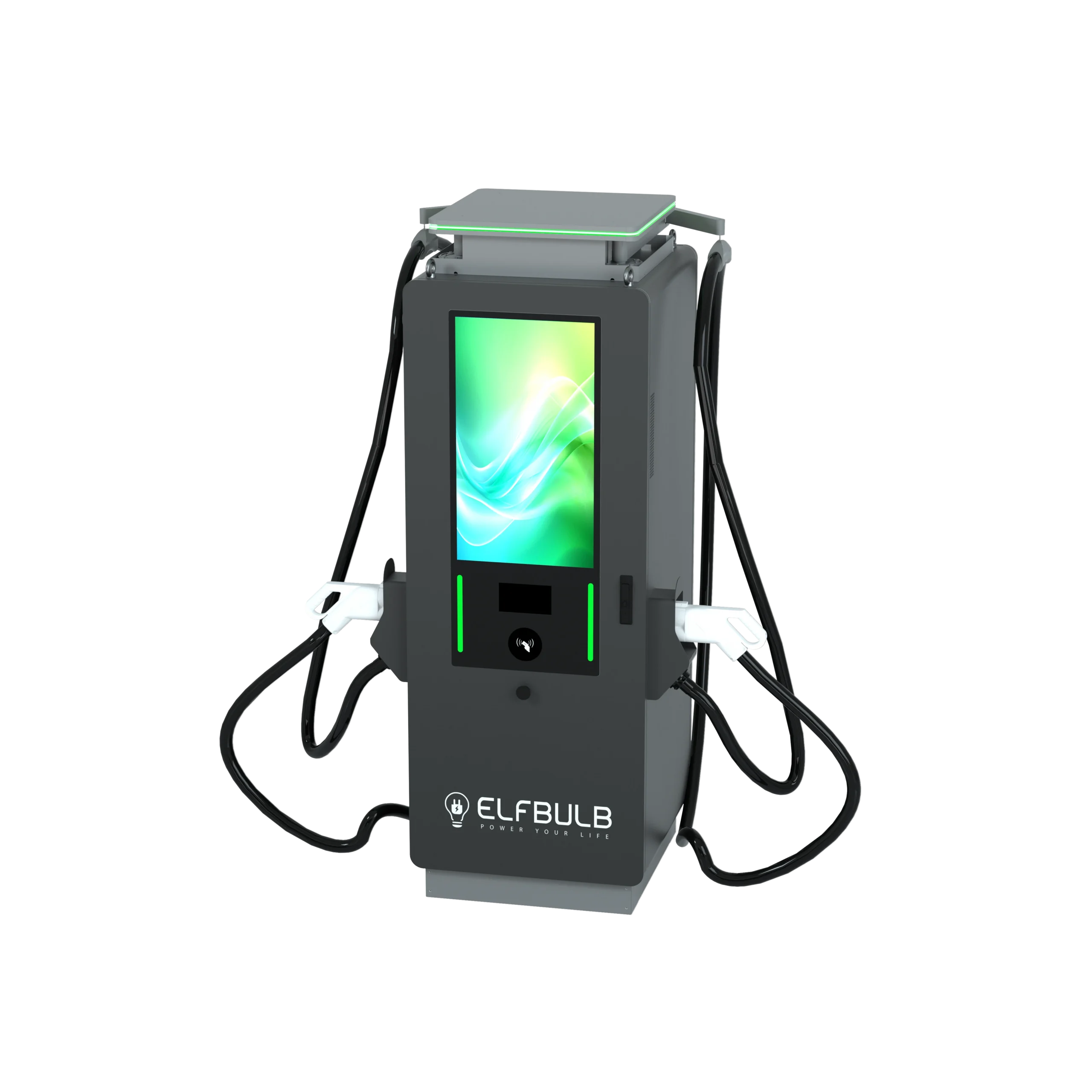

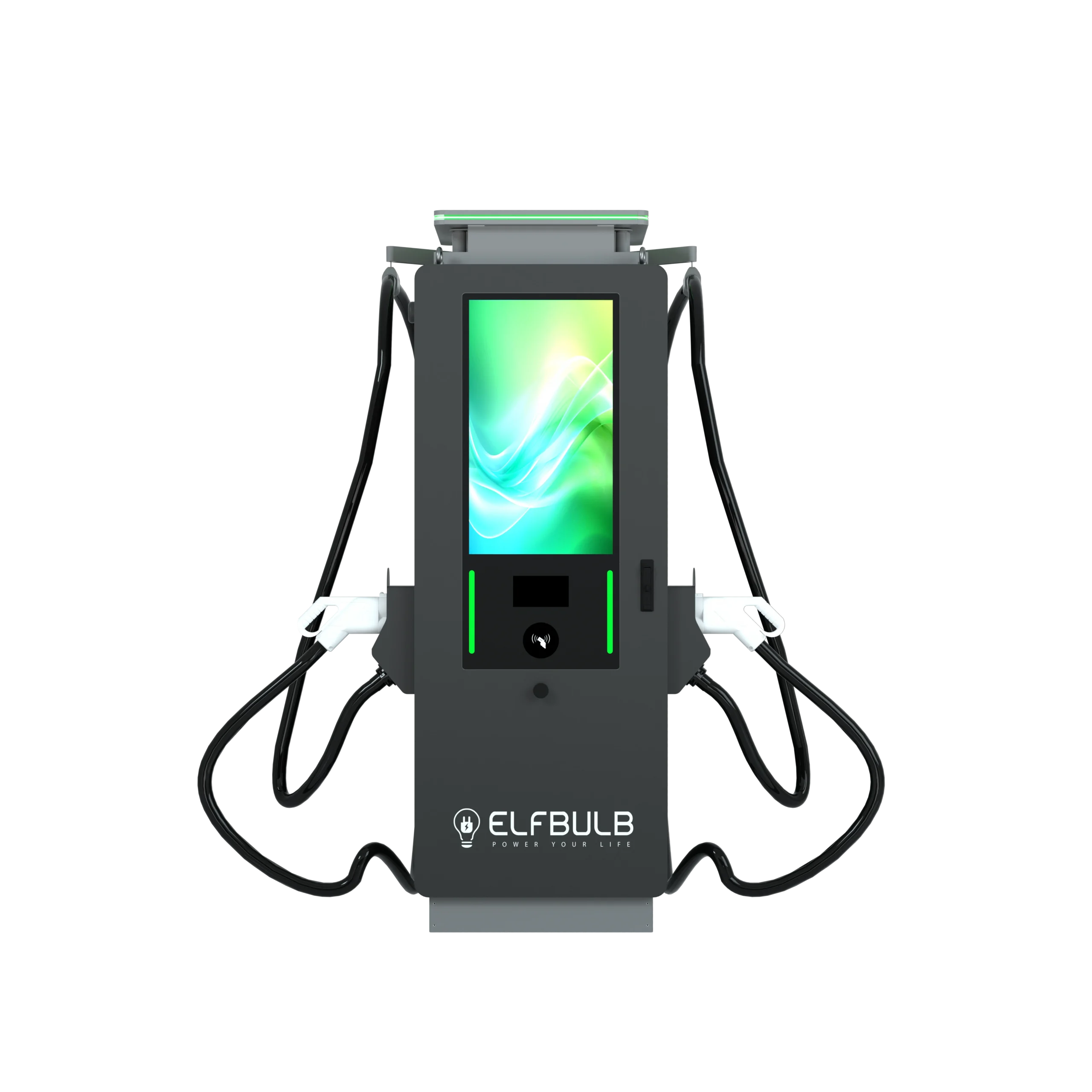

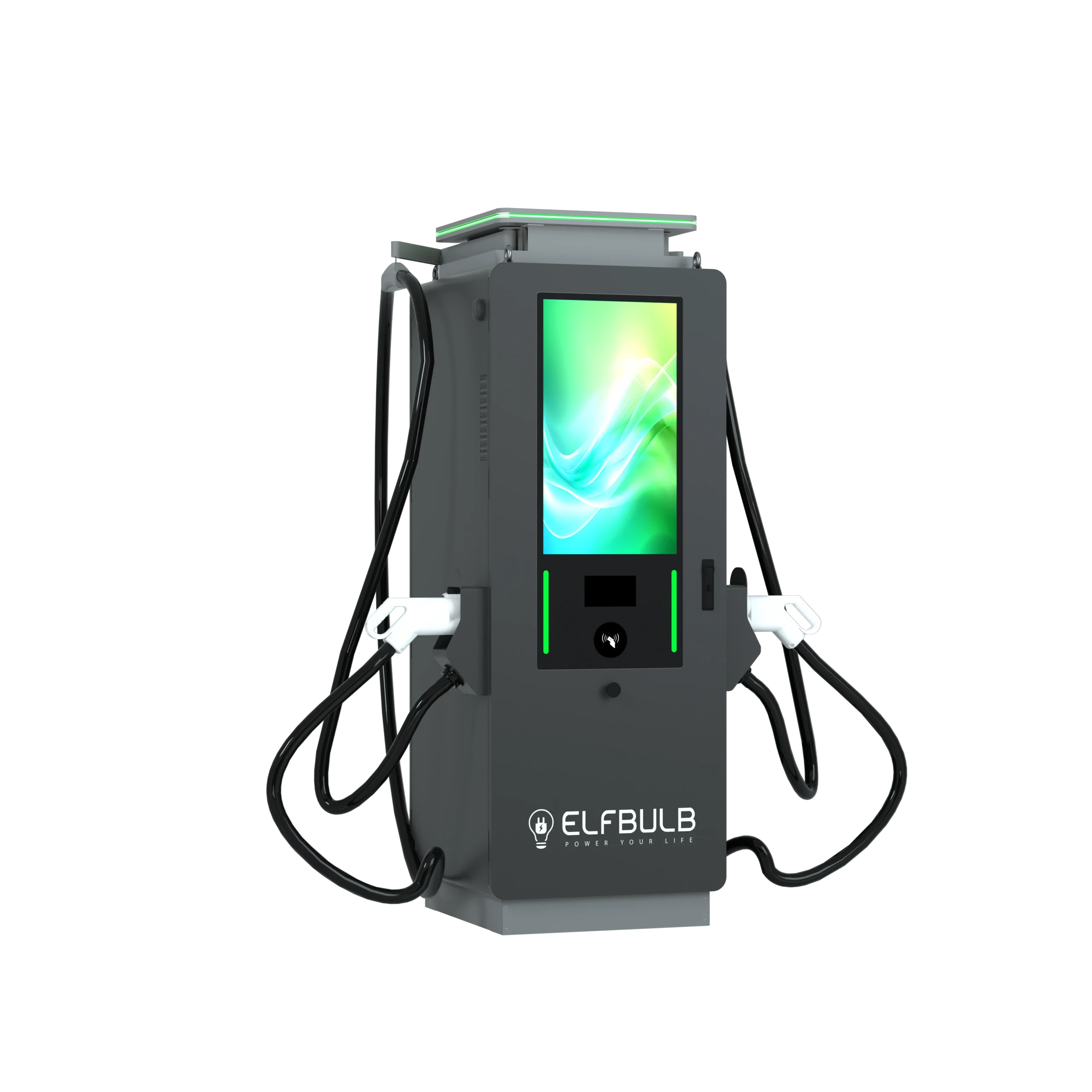

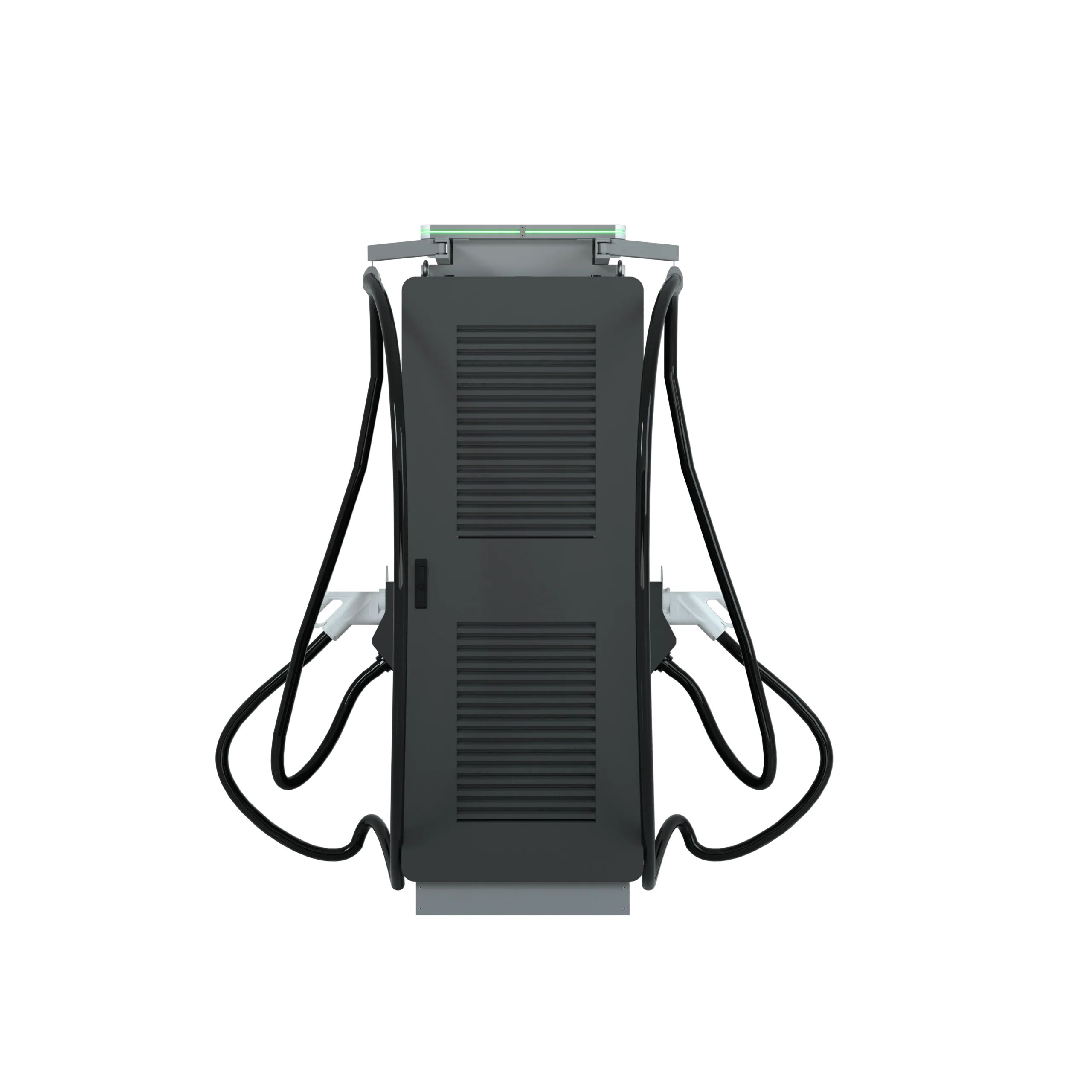

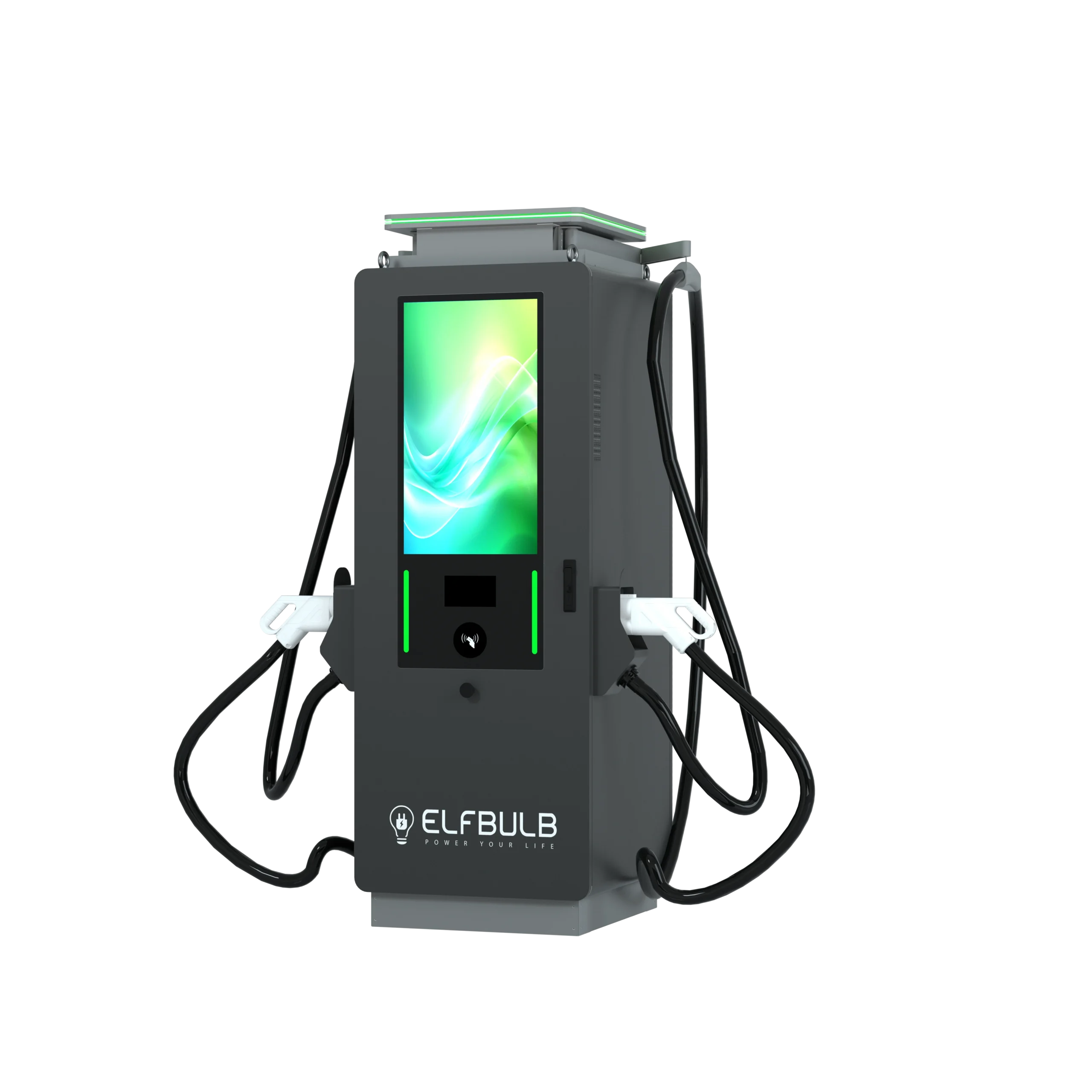

Fast DC EV Charger 60KW 80KW 120KW 160KW 180KW 240KW For Commercial Charging With Advertising Function

Parameters

Model Technical Specifications	EV-DC-60E2	EV-DC-80E2	EV-DC-120E2
Rated Input Voltage	AC380 V three-phase five-wire
Input Voltage Range	380 VAC ±20 %
Maximum Input Current	116 A	152 A	228A
Operating Frequency	50/60 Hz
Output Voltage Range	50–1000 V DC
Maximum Output Current per Gun/Connector	200 A	250 A	250A
Rated Output Power	60 kW	80 kW	120KW
Power Allocation/Switching	Equal power sharing
Total Harmonic Distortion of Input Current (THDI)	THDI ≤5 % (input 380 V, output 1000 V, 50 %–100 % load)
Input Inrush Current	Inrush current ≤110 % of rated input current
Power Factor (PF)	Power factor 0.99 (50 %–100 % output power, nominal input voltage & frequency) Power factor 0.95 (20 %–50 % output power, nominal input voltage & frequency)
Voltage Regulation Accuracy	Voltage regulation ≤±0.5 % (-30 °C to +55 °C)
Current Regulation Accuracy	Current regulation ≤±1 % (-30 °C to +55 °C, 20 %–100 % load current)
Output Voltage Ripple	Output voltage ripple peak coefficient ≤±1 % (input voltage 85 %, 100 %, 115 %)
Overall Efficiency	Efficiency ≥96 % (100 % full-load output power)
Standby Power Consumption	Standby power ≤15 W
Cooling Method	Cooling method: forced air
Noise Level	Noise ≤75 dB(A) at 1 m height
Cable Specification Reference	Cu 3×35 mm² + 2×25 mm²; Al 3×70 mm² + 2×50 mm²	Cu 3×50 mm² + 2×35 mm²; Al 3×95 mm² + 2×70 mm²	Cu 3×95 mm² + 2×70 mm²; Al 3×120 mm² + 2×95 mm²
Relevant Standards	Standards: EN/IEC 62196-3, IEC 61851:2023, ISO 15118

Model Technical Specifications	EV-DC-160E2	EV-DC-180E2	EV-DC-240E2
Rated Input Voltage	AC380 V three-phase five-wire
Input Voltage Range	380 VAC ±20 %
Maximum Input Current	304 A	384 A	456 A
Operating Frequency	50/60 Hz
Output Voltage Range	50–1000 V DC
Maximum Output Current per Gun/Connector	300 A / 250A		300A
Rated Output Power	160 kW	180 kW	240 kW
Power Allocation/Switching	Equal power sharing
Total Harmonic Distortion of Input Current (THDI)	THDI ≤5 % (input 380 V, output 1000 V, 50 %–100 % load)
Input Inrush Current	Inrush current ≤110 % of rated input current
Power Factor (PF)	Power factor 0.99 (50 %–100 % output power, nominal input voltage & frequency) Power factor 0.95 (20 %–50 % output power, nominal input voltage & frequency)
Voltage Regulation Accuracy	Voltage regulation ≤±0.5 % (-30 °C to +55 °C)
Current Regulation Accuracy	Current regulation ≤±1 % (-30 °C to +55 °C, 20 %–100 % load current)
Output Voltage Ripple	Output voltage ripple peak coefficient ≤±1 % (input voltage 85 %, 100 %, 115 %)
Overall Efficiency	Efficiency ≥96 % (100 % full-load output power)
Standby Power Consumption	Standby power ≤15 W
Cooling Method	Cooling method: forced air
Noise Level	Noise ≤75 dB(A) at 1 m height
Cable Specification Reference	Cu 3×120 mm² + 2×95 mm²; Al 3×150 mm² + 2×120 mm²	Cu 3×150 mm² + 2×120 mm²; Al 3×185 mm² + 2×150 mm²	Cu 3×240 mm² + 2×150 mm²; Al 3×300 mm² + 2×240 mm²
Relevant Standards	Standards: EN/IEC 62196-3, IEC 61851:2023, ISO 15118

Peak Shaving & Valley Filling: Lower Electricity Bills

Our system charges when electricity is cheap and discharges when it's expensive, significantly lowering your power costs. It also stores excess solar energy, boosting green energy self-consumption to accelerate your ROI.

Backup Power: Ensure Production

The system switches over in milliseconds during outages, ensuring continuous production. It also stabilizes voltage to protect sensitive equipment and extend its lifespan.

Smart Management: Easy and Hands-Off

Our cloud platform allows for real-time monitoring of the system. It operates automatically, requiring no manual intervention and enabling true hands-off operation.

Flexible Deployment: Scalable on Demand

Its modular design lets you scale capacity as needed, lowering your initial investment. The compact design also makes installation simple and space-efficient.
