Parameters

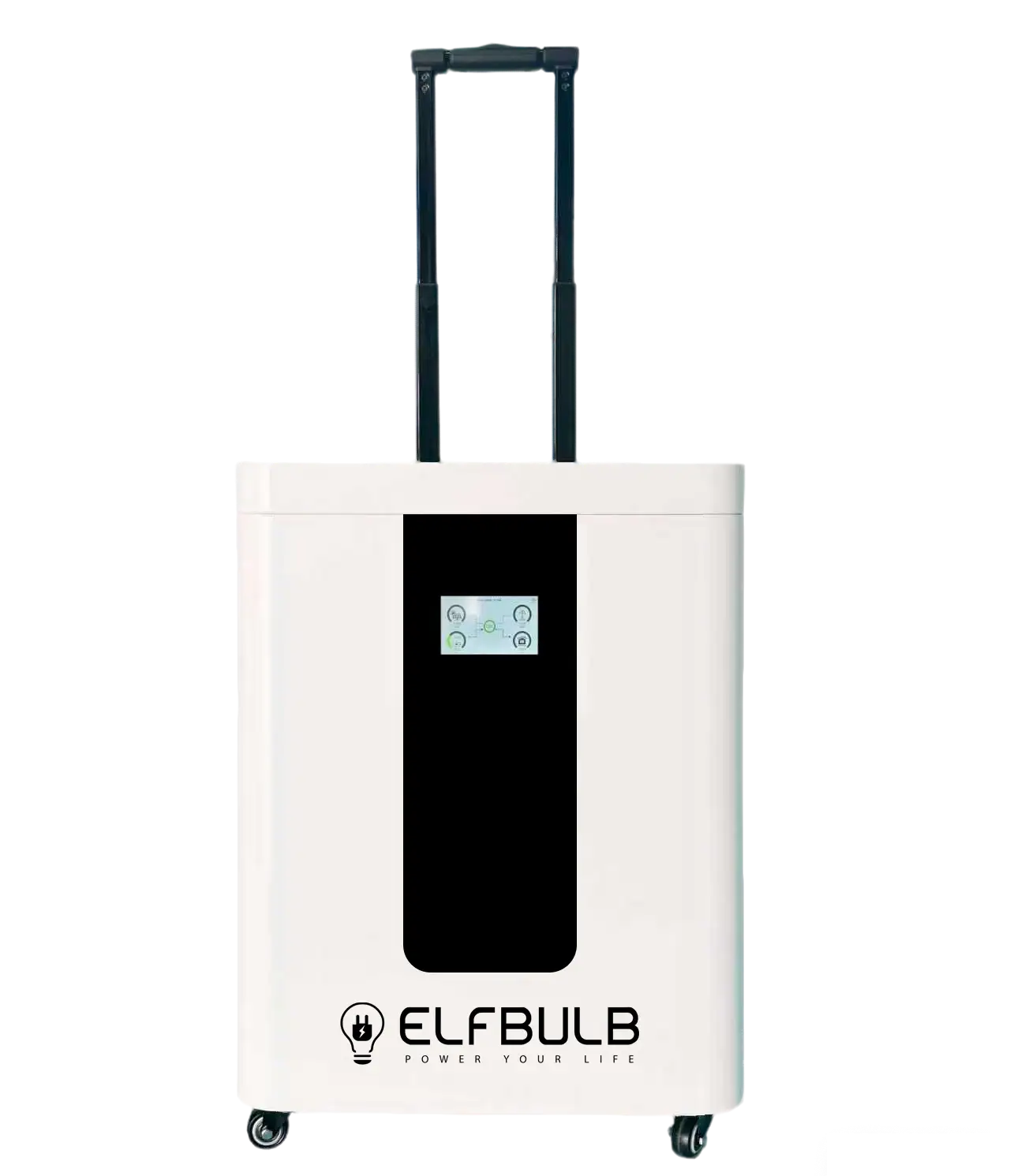

| Parameters of Standard Portable Trolley All In One Model | |||
| Model | ELF-HS-6KW5kWh | ELF-HS-6KW10kWh | ELF-HS-6KW16kWh |
| Battery Type | LiFePO4 | ||
| Rated Voltage of Battery | 51.2V | ||
| Rated Capacity of Battery | 5.12kWh | 10.24kWh | 16.07kWh |
| Standard Charging Voltage | 58.4V | ||
| Float Charging Voltage | 57.6V | ||
| Discharge Cut-off Voltage | 40V | ||
| Standard Charging Current | 50A | ||
| Maximum Charging Current | 50A | ||
| Maximum Discharge Current | 100A | ||
| Mains Input | 220V 50Hz | ||
| MAX AC Charge Current | 50A | 100A | |
| Max PV Input | 7500W | ||
| MPPT Tracking Range | 170-500VDC | ||
| Optimum PV Working Range | 300-400VDC | ||
| MAX PV Input Current | 18A | ||
| MAX PV Charge Current | 100A | ||
| AC Output Voltage | 220V | ||
| AC Output Frequency | 50Hz | ||
| AC Output Waveform | Pure Sine Wave | ||
| AC Output Power | 6200W (Peak 12400VA) | ||
| Cigarette Lighter Output | 12V 10A | / | |
| USB Output | QC:5V3A,9V2A,12V1.5A; PD:5V3A,9V3A,12V3A | / | |
| DC48V Output | 50A | ||
Advantages
• Powerful Team: Numerous R&D elites, robust technical strength.
• Strong Support: • Professional technical team, providing powerful assistance.
• On-Demand Configuration: Capacity and power customized as required.
• OEM/ODM Support: Providing OEM and ODM services.
• Full-Chain Control: In-house production ensures high reliability and long lifespan.
• International Standards: Strict certifications, guaranteeing quality and safety.
• Industry Expertise: Years of professional experience, deeply understanding market needs.
• Global Market: Products exported to 150+ countries, highly trusted.
Applications
This lithium battery provides an ideal energy storage solution for a variety of scenarios, including residential, commercial, and industrial applications, ensuring stable operation of equipment and efficient use of energy.
