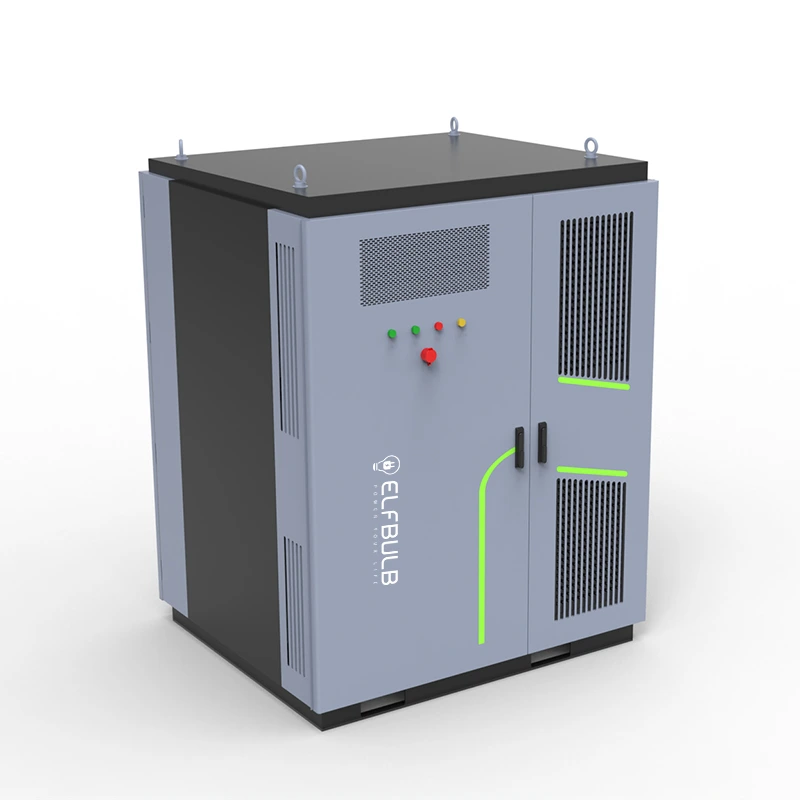

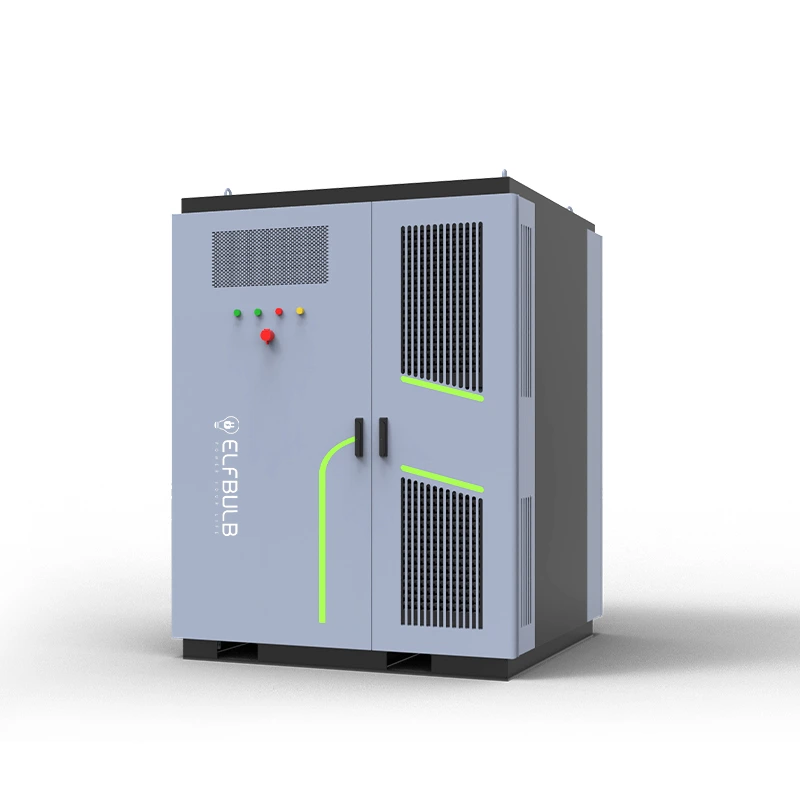

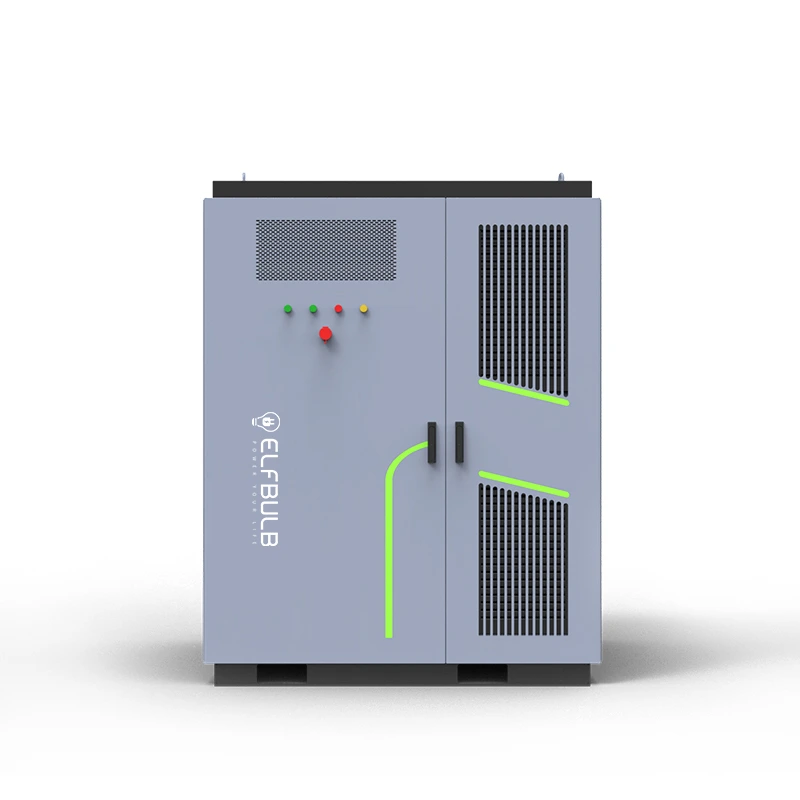

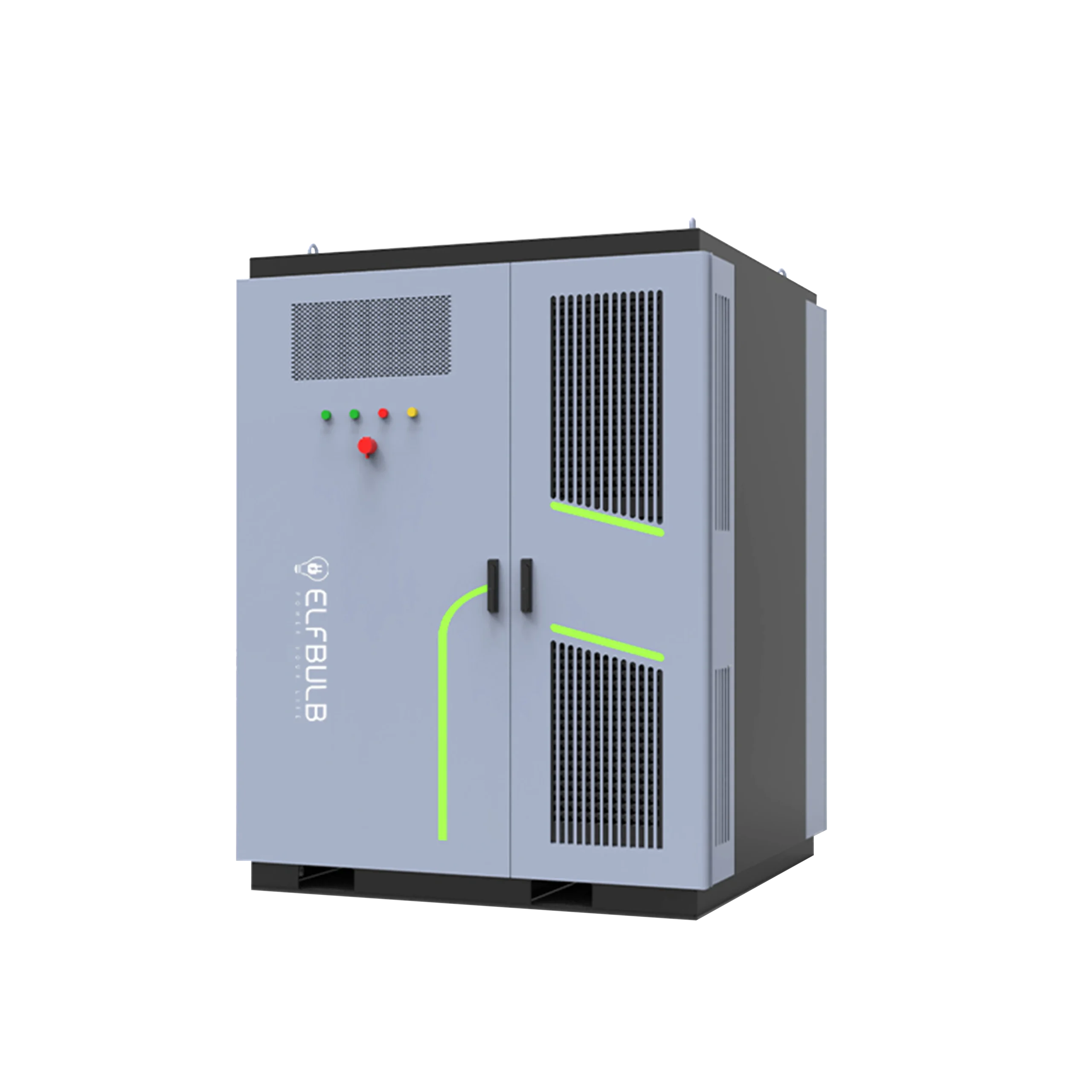

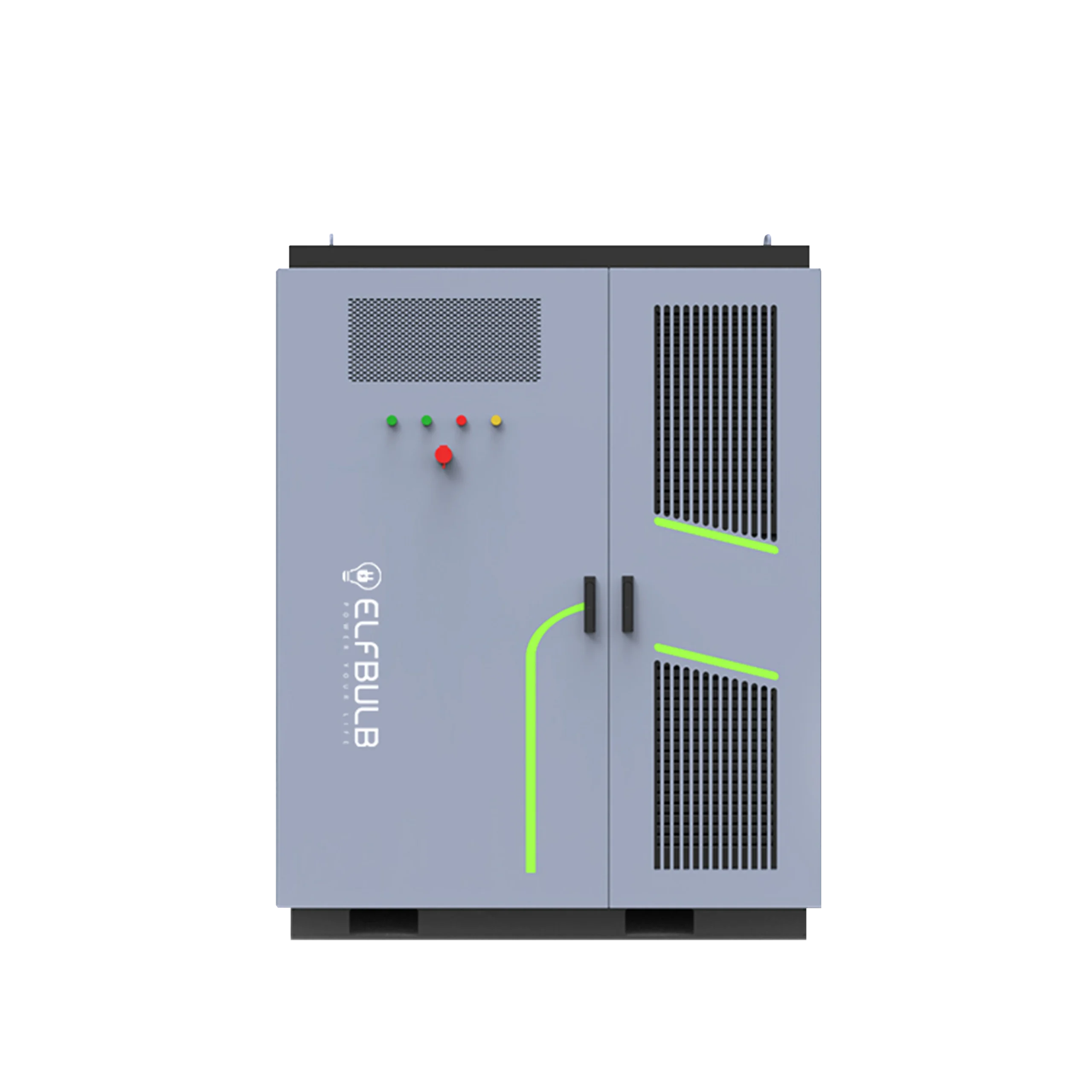

215KWH 232KWH 241KWH All In One Liquid Cooling Lithium Ion Battery Energy System 1C

Parameters

Technical specification for 1 hour backup(1C)

MODEL	200KW-215KWH	200KW-232KWH	200KW-241KWH	250KW-252KWH	250KW-261KWH
DC(Battery)
Cells Type	LiFePO4 Lithium Iron Phosphate
Cell specfication	3.2V280Ah	3.2V280Ah	3.2V314Ah	3.2V304Ah	3.2V314Ah
Configuration of Battery	240S1P	260S1P	240S1P	260S1P	260S1P
Single Battery Pack	153.6V280Ah/43.008kWh	166.4V280Ah/46.592kWh	153.6V314Ah/48.230kWh	166.4V304Ah/50.586kWh	166.4V314Ah/52.250kWh
Battery Module	5 Packs	5 Packs	5 Packs	5 Packs	5 Packs
Battery Capacity	215kWh	232kWh	241kWh	252kWh	261kWh
Max. Power	100KW	100KW	200KW	250KW	250KW
Max. Current	280A	280A	314A	304A	280A
Battery Rated Voltage	768V	832V	768V	832V	832V
Battery Voltage Range	672V-864V	728V-936V	672V-864V	728V-936V	728V-936V
AC(On / Off Grid)
Max. Power(kVA)	110KVA		137KVA
Active Power(kW)	100KW		125KW
Rated Voltage(V)	400V		400V
Rated Current(A)	288A		360A
Voltage Range	320V-460V		320V-460V
Rated Frequency	50/60Hz		50/60Hz
Range of Frequency	45-55/55-65Hz		45-55/55-65Hz
THDI	<3%		<3%
Power factor	1.0(Adjustable from 0.8 leading to 0.8 lagging)		1.0(Adjustable from 0.8 leading to 0.8 lagging)
AC System	3 phase 4 wires		3 phase 4 wires
Overload capability	110%		110%
Solar Side(PV)	Optional
Max. Power	100KW(50KW*2)
High Volage side Voltage	560V-1000V
High Voltage side Current	160A
Low Voltage side Voltage	500V-900V
Low Voltage side Voltage	200A
Uninterrupted Load(STS)）	Optional
STS Power	200KW
STS Voltage	400V 50HZ/60HZ
Overload Power	110%
Shift Time	<20mS
System operation stratege
Functional	Anti Backflow and Black Start
Operation Mode Selections	Power peak shaving and valley filling, electricity price peak valley arbitrage,
	photovoltaic priority for electricity cost savings, wind power generation
	priority for electricity cost savings, off grid power supply for remote areas
Scenerios	Photovaltaic and diesel storage project, Wind power and diesel storage project, Wind and photovoltaic

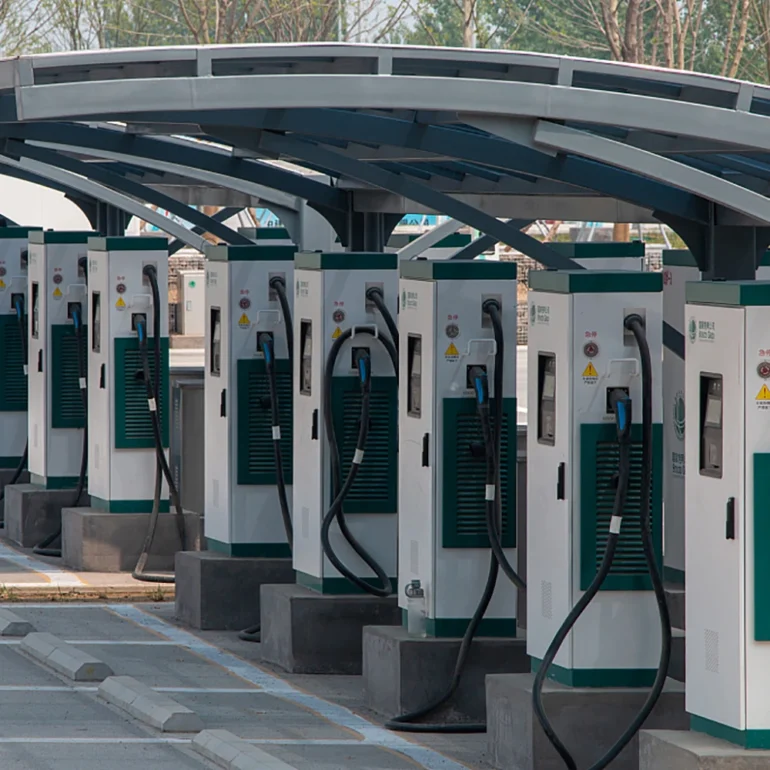

	diesel storage project, Charging Station + Energy storage project, On-grid electricity selling project
Specificaiton
Cabinet Size(WDH)	1585/1366/2055mm
Weight	≤2.7 T
Max. cycle efficiency	≥ 90 %
IP rating	IP55
Auxiliary Power Supply	Self-powered, Externally powered
Corrosion resistance rating	C3/C5
Operating Humidity Range	0%-100%(Non-condensing)
Operating Temperature	-30℃-50℃(>45℃ derating)
Max. Operation Altitude	2000 m
Communication:	Ethernet、485、CAN
Communication Protocal	ModbusTCP
Cooling method	Intelligency Liquid Cooling
Fire safety configuration	Smoke detector, Heat detector, Gas-based fire extinguishing system, Pressure relief valve, Pack-level fire protection, Cluster-level fire protection, Water-based fire protection, Automoatic pressure relief

Peak Shaving & Valley Filling: Lower Electricity Bills

Our system charges when electricity is cheap and discharges when it's expensive, significantly lowering your power costs. It also stores excess solar energy, boosting green energy self-consumption to accelerate your ROI.

Backup Power: Ensure Production

The system switches over in milliseconds during outages, ensuring continuous production. It also stabilizes voltage to protect sensitive equipment and extend its lifespan.

Smart Management: Easy and Hands-Off

Our cloud platform allows for real-time monitoring of the system. It operates automatically, requiring no manual intervention and enabling true hands-off operation.

Flexible Deployment: Scalable on Demand

Its modular design lets you scale capacity as needed, lowering your initial investment. The compact design also makes installation simple and space-efficient.
