A Home Energy Storage System (HESS) is a device that integrates batteries, inverters, and control systems. It can store electricity generated from the grid or solar panels and supply power to your home when needed. HESS is designed to improve energy efficiency, reduce electricity costs, and provide backup power during outages, ensuring the stability and reliability of your home’s electricity supply.
Storing solar power, reducing reliance on the grid, and lowering energy costs.
Providing electricity during power outages, ensuring basic household needs are met.
Charging during off-peak hours when electricity prices are low and discharging during peak hours when prices are high to save on electricity bills.
Optimizing energy use based on weather conditions, consumption habits, and other factors through a smart home system.
HESS can provide power for everyday household needs, meeting the electricity demands of lighting, appliances, and other devices.
During power outages, HESS can provide emergency power to the home, ensuring the operation of critical equipment.
HESS can be used in conjunction with solar panels to store excess solar energy, enabling energy self-sufficiency.
HESS can provide power for charging electric vehicles, reducing charging costs.

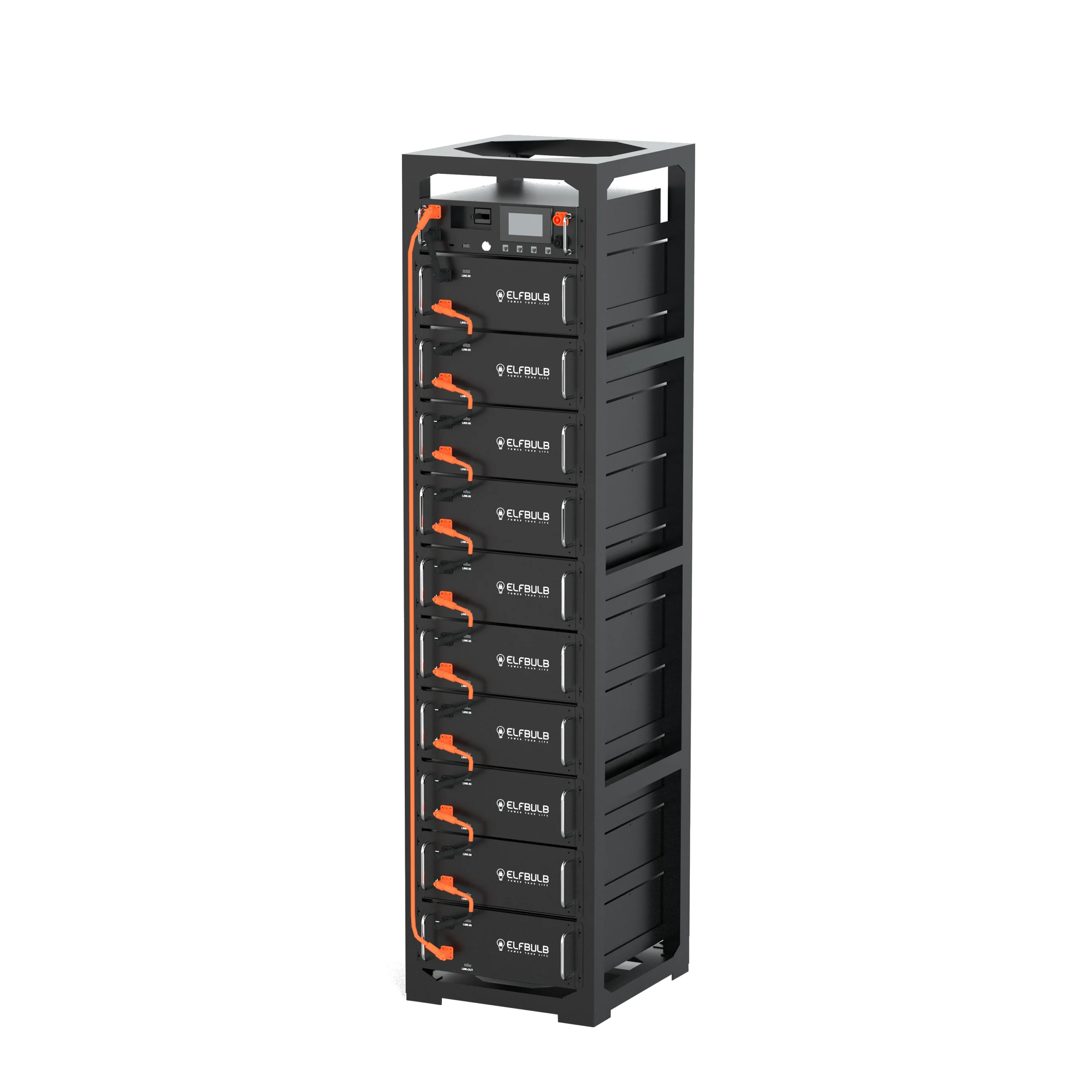

| MODEL | EBH-153-100 | EBH-204-100 | EBH-409-100 | EBH-614-100 |
| Module Energy | 5.12KWH | |||
| Module Nominal Voltage | 51.2V | |||
| Module Capacity | 100AH | |||
| BAT Module Qty(Optional) | 3×51.2V100Ah | 4×51.2V100Ah | 8×51.2V100Ah | 12×51.2V100Ah |
| System Nominal Voltage | 153.6V | 204.8V | 409.6V | 614.4V |
| System Operating Voltage | 120~175.2V | 160~234V | 320~467.2V | 480~700V |
| System Energy | 15.36KWH | 20.48KWH | 40.96KWH | 61.44KWH |
| Charge/Discharge Current(A) | Recommend:50 |Nominal:100|Peak Discharge 150（2mins,25℃） | |||
| Working Temperature(℃) | Charge:0~55/Discharge:-20~55 | |||
| Communication Port | CAN/RS232/RS485 | |||
| Humidity | 5~85%RH | |||
| Altitude | ≤2000m | |||
| IP Rating of Enclosure | IP54 | |||
| Net Weight(without cabinet) | 150kg | 230kg | 500kg | 650kg |
| Dimension(mm) | 589*590*900 | 1200* 693*1102 | 2090*693*1102 | 550*600*2240 |
| Installation Location | Rack Mounting | |||
| Storage Temperature(C) | 0~35 | |||
| Recommend DOD of Discharge | 90% | |||
| Cycle Life | 25±2°C, 0.5C/0.5C,EOL70%≥6000 | |||
| Certification | CE/IEC62619 /UL1973 /UL9540A /UN38.3 | |||
Since 2010, Yuyang has been a pioneering manufacturer of diverse lithium battery solutions, including residential, commercial & industrial energy storage, large-scale BESS, EV batteries, and UPs. Qur residential energy storage has achieved global recognition in 156 countries, highlighting our product quality, Yuyang excels in providing inteligent micro-grid solutions for power-constrained regions, with proven success in Belt and Road Initiative countries.
If you are interested in our products, you can leave us a message via the form below and we will get back to you soon!
