Home Energy Storage System
A Home Energy Storage System (HESS) is a device that integrates batteries, inverters, and control systems. It can store electricity generated from the grid or solar panels and supply power to your home when needed. HESS is designed to improve energy efficiency, reduce electricity costs, and provide backup power during outages, ensuring the stability and reliability of your home’s electricity supply.
Features
Self-sufficiency:
Storing solar power, reducing reliance on the grid, and lowering energy costs.
Backup Power
Providing electricity during power outages, ensuring basic household needs are met.
Peak Shaving and Valley Filling
Charging during off-peak hours when electricity prices are low and discharging during peak hours when prices are high to save on electricity bills.
Smart Control
Optimizing energy use based on weather conditions, consumption habits, and other factors through a smart home system.
Application scenarios
Daily power use
HESS can provide power for everyday household needs, meeting the electricity demands of lighting, appliances, and other devices.
Emergency power
During power outages, HESS can provide emergency power to the home, ensuring the operation of critical equipment.
Solar power systems
HESS can be used in conjunction with solar panels to store excess solar energy, enabling energy self-sufficiency.
Electric Vehicle Charging
HESS can provide power for charging electric vehicles, reducing charging costs.
Specifications

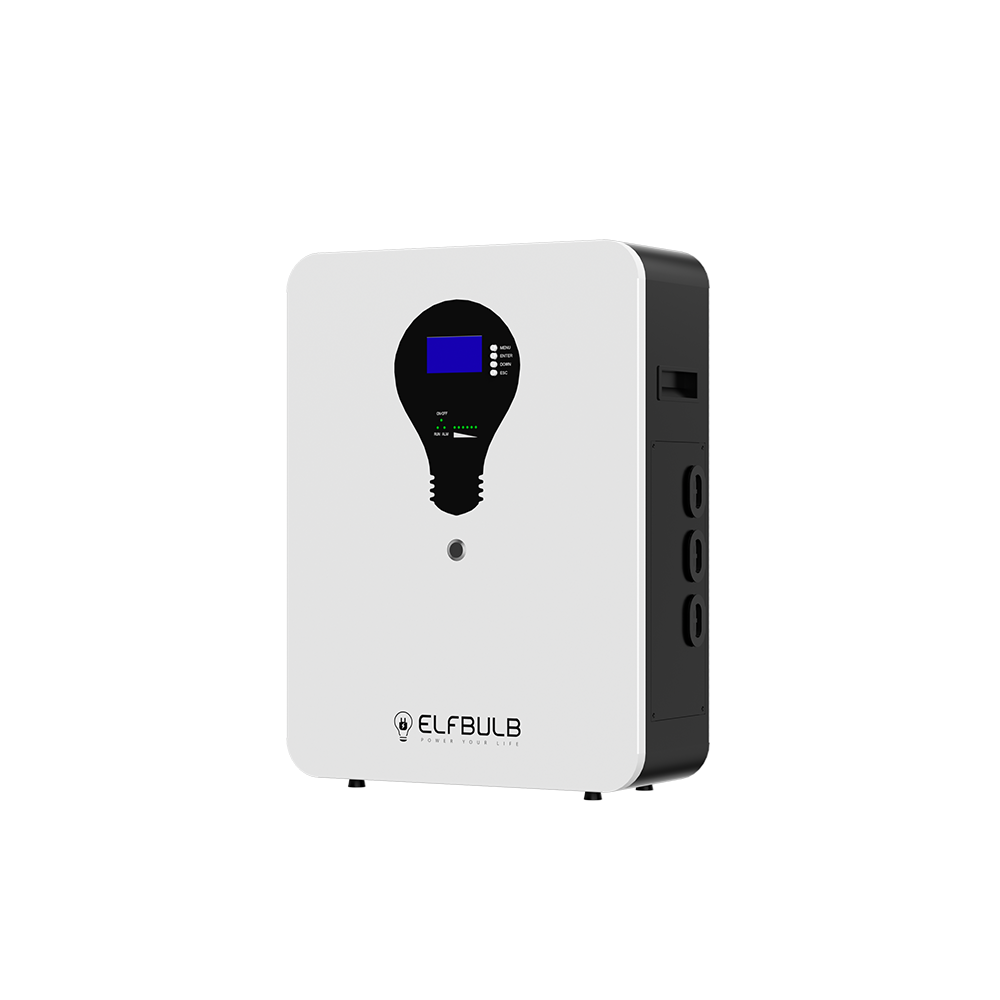

Hot Series Wall Mounted LiFePO4 Battery 51.2V 100AH With LCD Display
- Long lifespan: 6000+ cycles with 5 years warranty
- Efficient performance: 100A Smart BMS, 1C charge & discharge rate
- Convenient display: LCD screen for easy monitoring
- Maximum usability: 100% usable energy with 5.12KWh capacity
- Expandable capacity: Connect up to 15 units in parallel, expandable up to 76.8kWh
- Compatibility: Works seamlessly with all mainstream inverters
| MODEL | EBW-05/51.2 |
| Total Energy(kWh) | 5.12 |
| Capacity(Ah) | 100 |
| Nominal Voltage(V) | 51.2 |
| Float Voltage(V) | 56 |
| Equalization Voltage(V) | 57.6 |
| Discharge Cutting Voltage(V) | 44.8 |
| MAX.Charge & Discharge Current(A) | 100 |
| MAX C Rating | 1C |
| Dimension(mm) | 550x415x170 |
| Net Weight(kg) | 46.2 |
| Scalable | 1~16 in parallel |
| Communication Ports | CAN,RS485,RS232 |
| Communicated Inverter | Goodwe/Victron/Sofar/Deye/Voltronic /Pylon /Luxpower Afore/Must/Sako/ |
| Sorotec/ Sma/ Solis / Phocos /Kstar / Mpp Solar /Growatt/Megarevo/Srne | |
| Charging Temp Range(℃) | 0~55 |
| Disharging Temp Range(℃) | -10~55 |
| Cycle Lifes | ≥6000 cycles @80%DOD @25℃ |
| Warranty | 5 years |
| Certifications | CE,UN38.3,MSDS |
| Function | WIFI,Breaker,Equalizer,Bluetooth(optional) |
