Home Energy Storage System
A Home Energy Storage System (HESS) is a device that integrates batteries, inverters, and control systems. It can store electricity generated from the grid or solar panels and supply power to your home when needed. HESS is designed to improve energy efficiency, reduce electricity costs, and provide backup power during outages, ensuring the stability and reliability of your home’s electricity supply.
Features
Self-sufficiency:
Storing solar power, reducing reliance on the grid, and lowering energy costs.
Backup Power
Providing electricity during power outages, ensuring basic household needs are met.
Peak Shaving and Valley Filling
Charging during off-peak hours when electricity prices are low and discharging during peak hours when prices are high to save on electricity bills.
Smart Control
Optimizing energy use based on weather conditions, consumption habits, and other factors through a smart home system.
Application scenarios
Daily power use
HESS can provide power for everyday household needs, meeting the electricity demands of lighting, appliances, and other devices.
Emergency power
During power outages, HESS can provide emergency power to the home, ensuring the operation of critical equipment.
Solar power systems
HESS can be used in conjunction with solar panels to store excess solar energy, enabling energy self-sufficiency.
Electric Vehicle Charging
HESS can provide power for charging electric vehicles, reducing charging costs.
Specifications

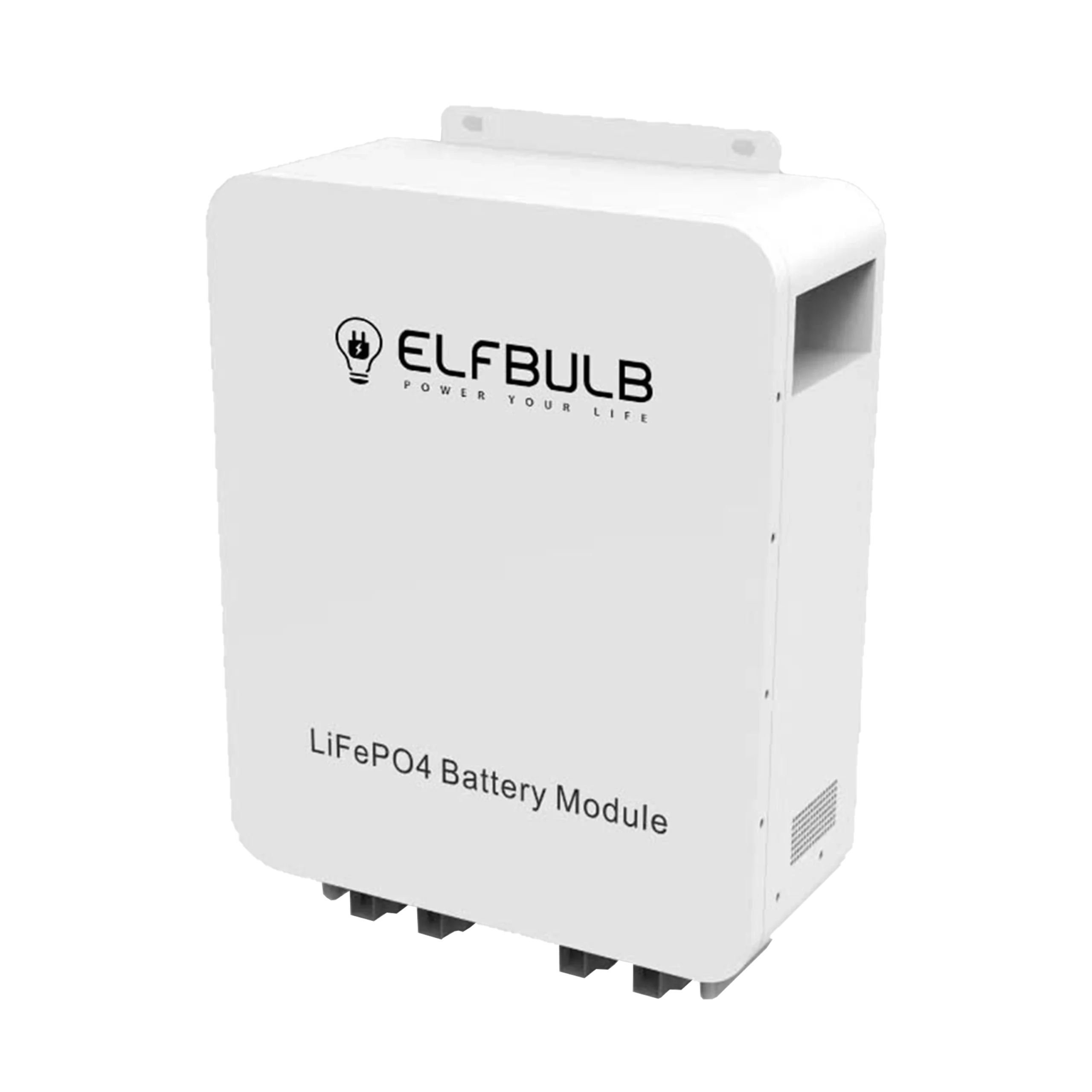

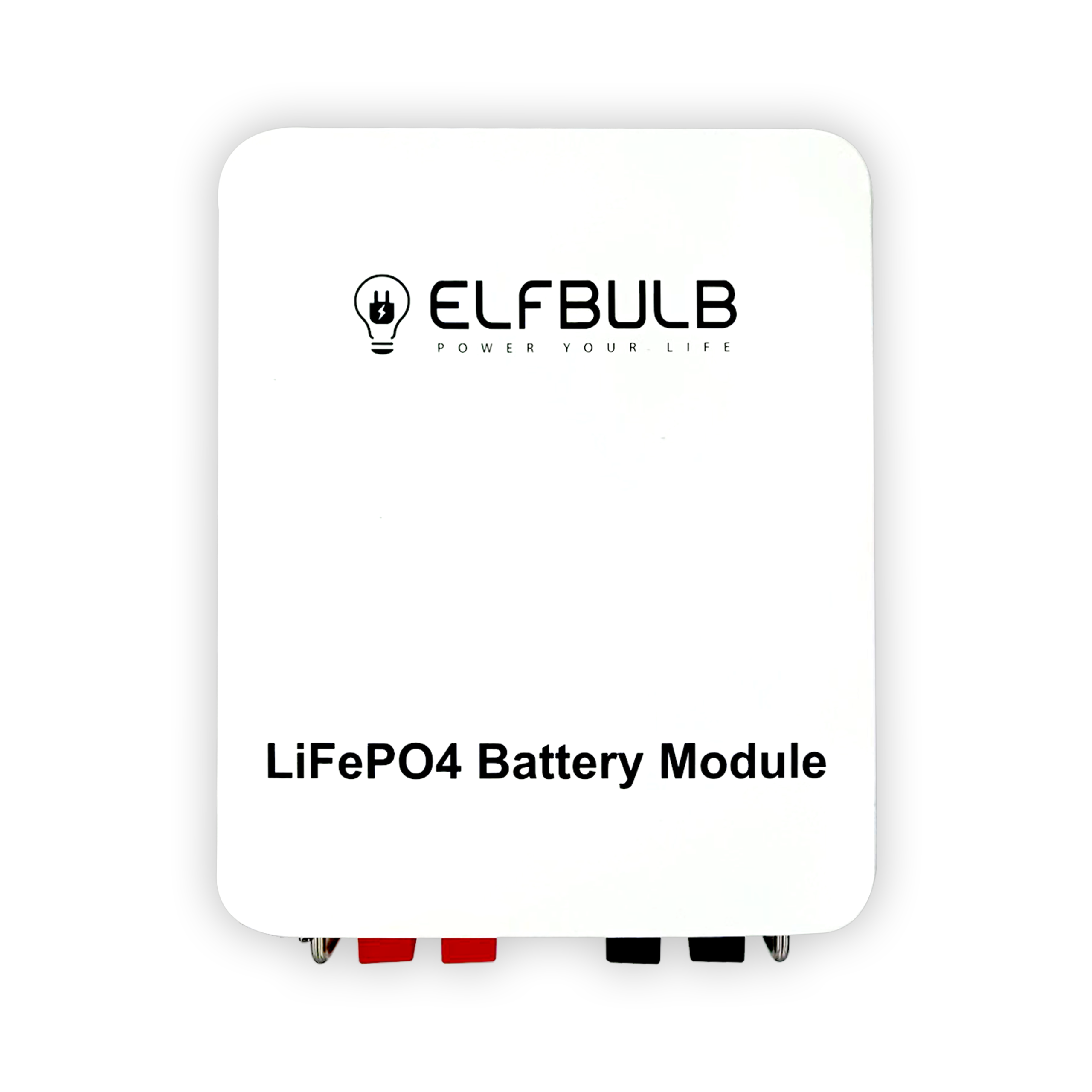

12V 100AH 200AH Wall Mounted LiFePO4 Battery Small Capacity
- Easy for installation and maintenance with software BMS monitoring
- Can be easily hang on the wall
- Support high current charging and discharging
- Intelligent BMS can be compatible with most of wht inverter brands in the market
| Model | EBW-1.28 | EBW-2.56 |
| Cell | Lithium iron phosphate | |
| Nominal voltage | 12.8V | |
| Nominal capacity | 100AH | 200AH |
| Energy | 1280WH | 2560WH |
| Cycle life | 6000 cycles @80% DOD | |
| Series parallel mode | 4S1P | |
| Operating temperature | Charging：0~+55℃| Humidity：15%~75%| Storage：10~+50℃ | |
| Protection | Electronic circuit breaker,BMS voltage protection,current limiting | |
| Water dust resistance | IP65 | |
| Net Weight | 17KG | 19KG |
| Size(mm) | 390*320*135 | 515*350*135 |
