Lithium Battery Factory 100~400Ah 5~23kWh
Various battery specifications can be customized, creating more possibilities for your business

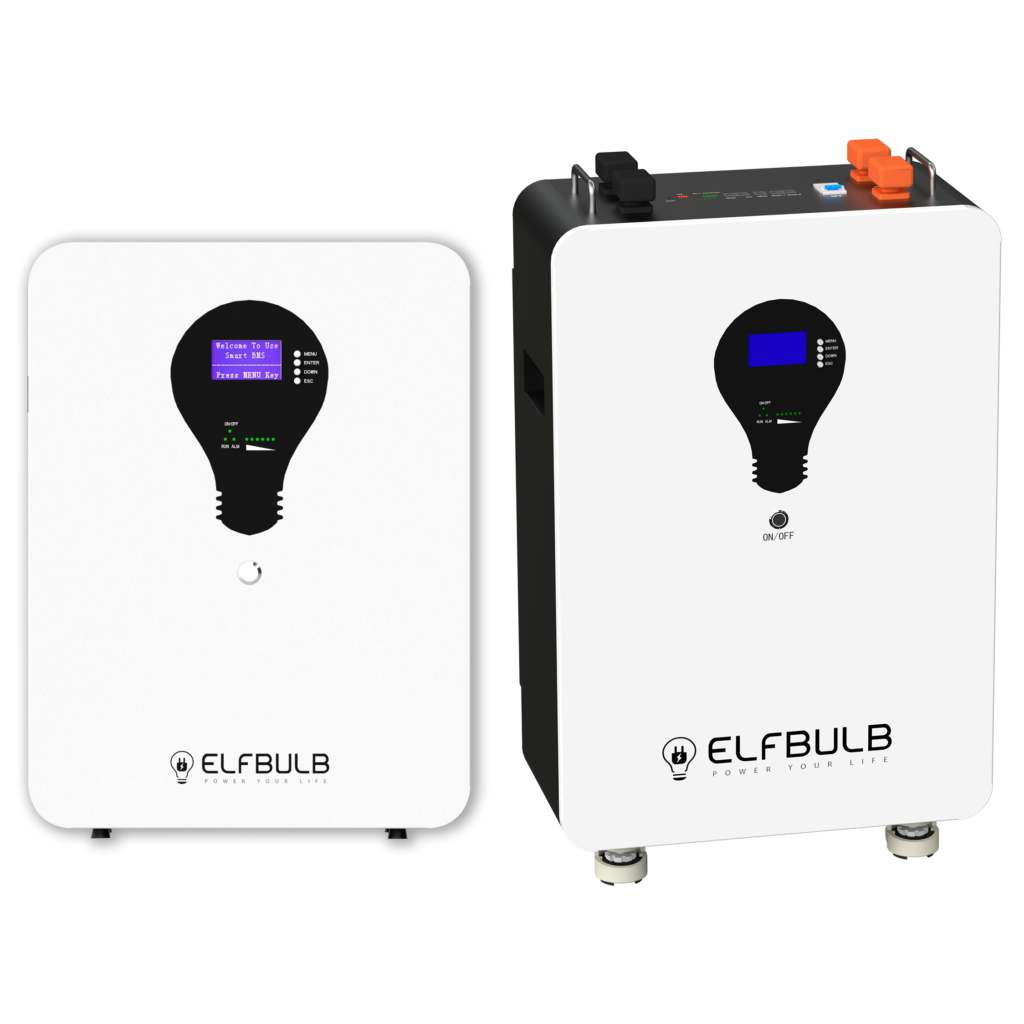

51.2V Lithium Battery Hot Series
● More than 6000+ cycles
● 100% usable energy
● With RS232,RS485,CAN
● LCD screen for easy monitoring
● Connect up to 15 units in parallel
● 100A smart bms, 1C charge & discharge rate
● Works seamlessly with all mainstream inverters
● With breaker,equalizer,wifi(optional)
Battery cell partner：Real full capacity as stated with A grade cells and best BMS
lifepo4 battery
Battery Parameters |
 |
|---|---|
|
MODEL |
EBW-05/51.2 |
|
Total Energy |
5.12kWh |
|
Capacity |
100Ah |
|
Nominal Voltage |
51.2V |
|
Cycles |
6000+ cycles @80%DOD @25℃ |
|
Max C Rating |
1C |
|
Dimension |
550x415x170mm |
|
Net Weight |
46.2Kg |
Battery Parameters |
 |
|---|---|
|
MODEL |
EBW-15/51.2 |
|
Total Energy |
15kWh |
|
Usable Capacity |
300Ah |
|
Nominal Voltage |
51.2V |
|
Cycles |
6000+ cycles @80%DOD @25℃ |
|
Max C Rating |
0.7C |
|
Dimension |
817x500x277mm |
|
Net Weight |
121Kg |
Battery Parameters |
 |
|---|---|
|
MODEL |
EBF-1/17 |
|
Total Energy |
17.5kWh |
|
Usable Capacity |
360Ah |
|
Nominal Voltage |
51.2V |
|
Cycles |
6000+ cycles @80%DOD @25℃ |
|
Max C Rating |
0.5C |
|
Dimension |
912*682*385mm |
|
Net Weight |
170.5Kg |
