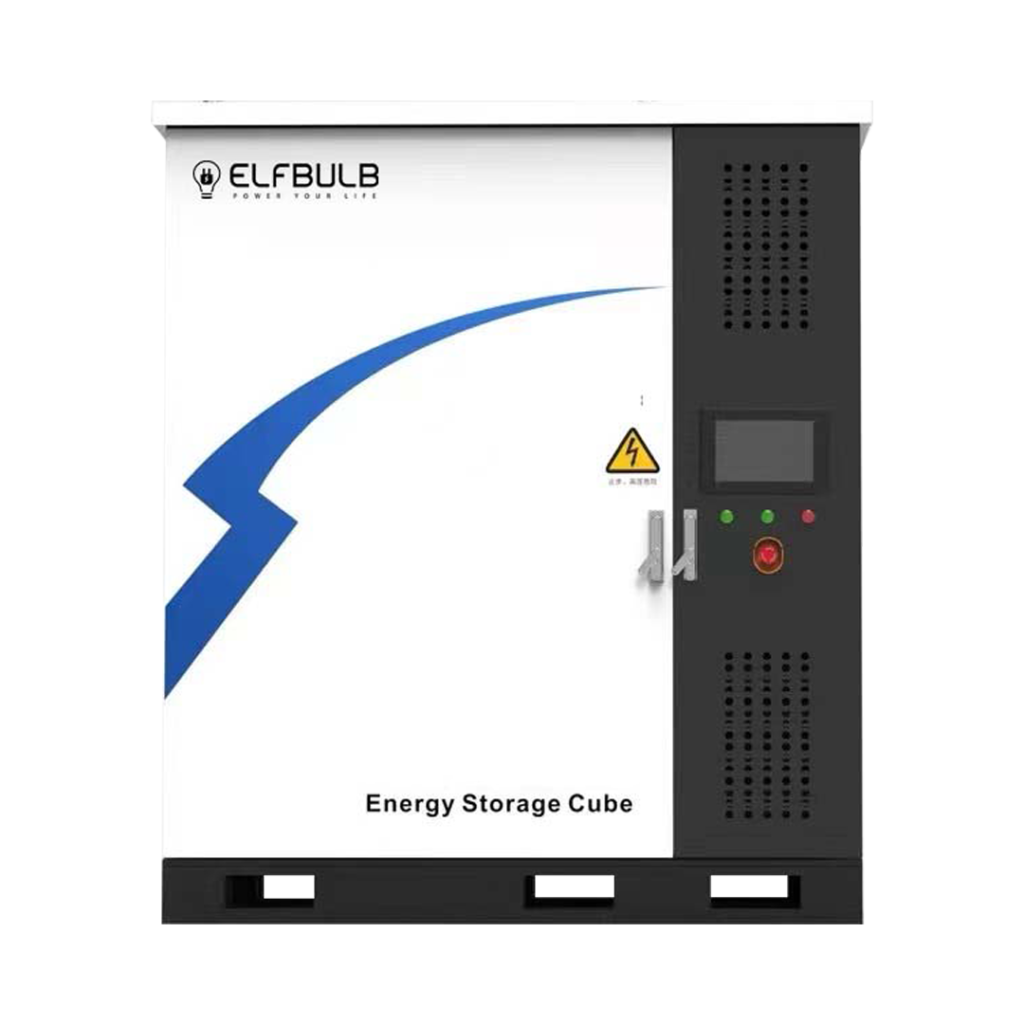

Commercial & Industrial BESS 100kW 215kWh
Commercial and industrial battery energy storage system
Air-cooled 100KW-215KWh
●Battery Pack Configuration:
14.336kWh/1P16S
●Battery system configuration:
1P224S
●Battery system capacity:
215kWh
●Charge-discharge rate:
0.5P
●Battery cooling mode:
Air cooling
FEATURES
● PCS & STS
● EMS
● Forkliftable
● Easy Rigging Eye Bolts
● Data Monitoring
● On-Grid & Off-Grid
● ＜20ms Transfer Time
● Generator Replacement
● Fire Suppression System
● Intelligent Operation & Maintenance
● Integrated Air Conditioning System
● Integrated PV
● Intrusion Alarm
● Grid Connection Certified
FACTORY
200kwh battery
Battery Parameters |
EBI-215 |
|
|---|---|---|
|
Cell type |
Lithium iron phosphate 3.2V/280Ah |
|
|
Battery Pack Configuration |
14.336kWh/1P16S |
|
|
Battery system configuration |
1P224S |
|
|
Battery system capacity |
215kWh |
|
|
Battery rated voltage |
768VDC |
|
|
Battery voltage range |
600~876VDC |
|
|
Charge-discharge rate |
0.5P |
|
|
Number of charge and discharge |
6000 |
|
|
Battery cooling mode |
Air conditioning intelligent air cooling |
|
|
AC parameter |
||
|
Rated power |
100kW |
|
|
Maximum power |
110kW（10min） 120kW（1min） |
|
|
Current total harmonic distortion rate |
≤3% |
|
|
Direct current component |
< 0.5% output rated current |
|
|
Rated voltage |
3*230V/400V |
|
|
Allowable grid voltage range |
360V~440V |
|
|
Access method |
3P4W+PE |
|
|
Rated grid frequency |
50/60Hz |
|
|
Power factor range |
1 (lead)~ -1 (lag) |
